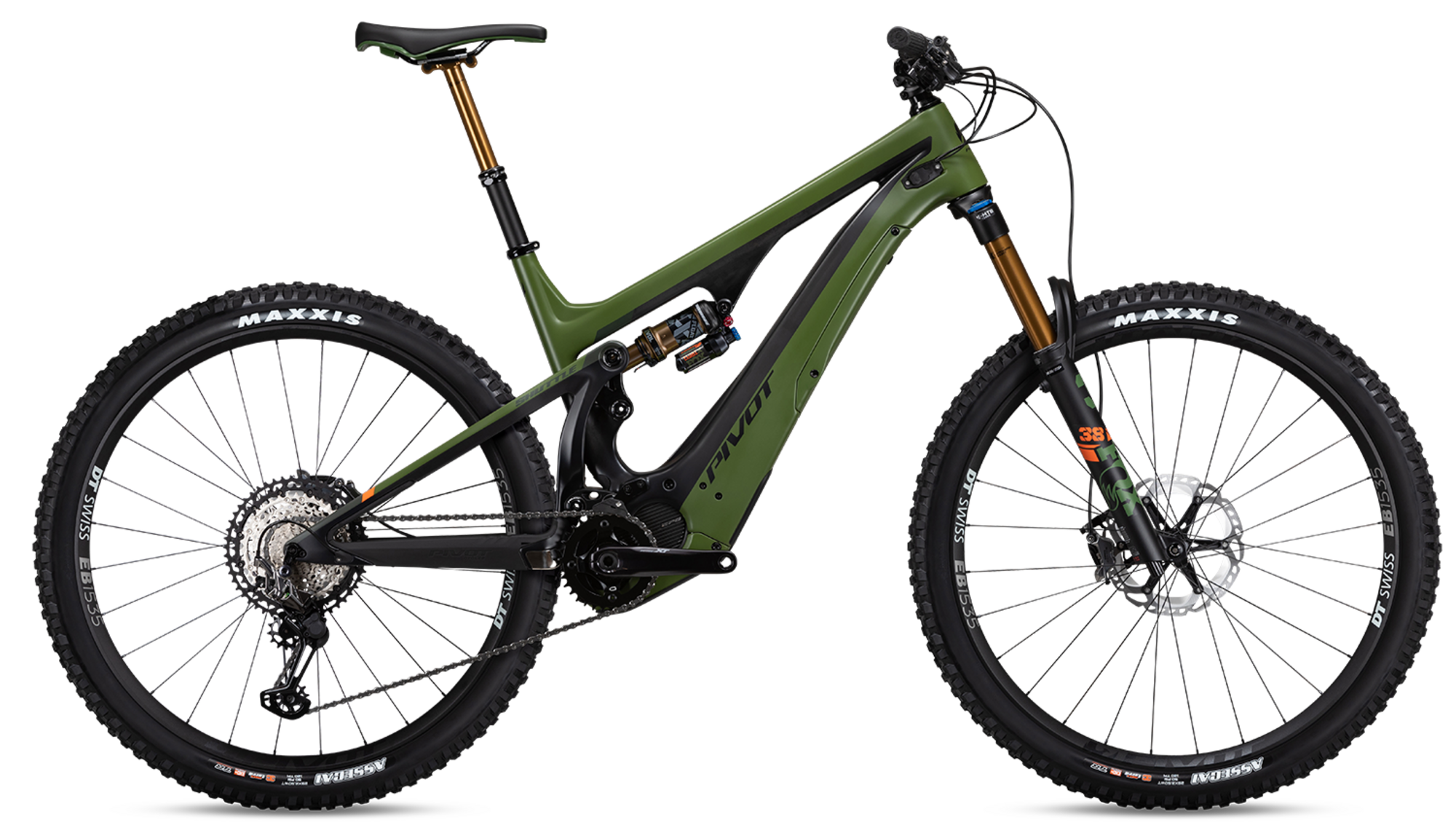

Sleek, lightweight, capable, beautifully crafted.
The Power to Go Big
The 726 Wh battery demolishes old expectations about range, and gives you the power to ride longer, explore deeper. Shimano’s EP8 drive unit is incredibly efficient, extending battery life even further. Our uniquely adapted battery features a new two-bolt release system, making battery swaps or off-the-bike charging a snap.
The Ultimate Edge
Shimano’s EP8 is lighter, quieter, and more powerful than its predecessor. This next-level drive unit is perfectly matched with the Shuttle AM’s suspension design. The dw-link's legendary pedaling efficiency extracts every last ounce of effort from each assisted pedal stroke, regardless of how much assist the motor is providing.
Progressive geometry, highly evolved dw-link suspension and a brawny Fox 38 fork offer unmatched suspension performance and handling. The Shuttle AM has the power to take you where you dream of going, and give you the ride of your life getting there and back.
|A||Seat Tube Length (C-T)||39.5 cm||42.4 cm||45.8 cm||49.6 cm|
|B||Top Tube Length||60 cm||62 cm||64 cm||66.7 cm|
|C||Head Tube Length||11 cm||12 cm||13 cm||14 cm|
|D||Head Tube Angle||64.3°||64.3°||64.3°||64.3°|
|E||Seat Tube Angle (Eff.)||74.0°||74.0°||74.0°||74.0°|
|F||Chainstay Length||44.1 cm||44.1 cm||44.1 cm||44.1 cm|
|G||Bottom Bracket Height||35.8 cm||35.8 cm||35.8 cm||35.8 cm|
|H||Standover||71.5 cm||71.5 cm||72.26 cm||72.26 cm|
|I||Wheelbase||118.7 cm||121.4 cm||123.5 cm||126.4 cm|
|Treeline Green / Small / 29-inch||196338093996||00SHTV329AXTR1-GRNSMDRPCN||210000057451|
|Treeline Green / Medium / 29-inch||196338094023||00SHTV329AXTR1-GRNMDDRPCN||210000057452|
|Treeline Green / Large / 29-inch||196338094016||00SHTV329AXTR1-GRNLGDRPCN|
|Treeline Green / X-Large / 29-inch||196338094009||00SHTV329AXTR1-GRNXLDRPCN|
