The Transition Relay Carbon Deore combines electric and traditional riding in a single frame. Lightweight, efficient, and quiet, it delivers a trail experience that feels natural and responsive, unlike typical eMTBs. Ready for any mountain biking adventure, you can easily switch to electric mode for extra power or remove the battery without tools for a pure mountain bike ride. Whether riding with friends on eMTBs or traditional bikes, the Relay adapts seamlessly to your style and terrain.
Specs:
| FRAME | Relay Carbon 160mm | ||||
| WHEEL SIZE | 29" (X-Small 27.5") | ||||
| DRIVE UNIT | Fazua Ride 60 | ||||
| BATTERY | Fazua Energy 430 Take Out | ||||
| DISPLAY | Fazua Top Tube LED Hub | ||||
| ASSIST SWITCH | Fazua Ring Control | ||||
| REAR SHOCK | RockShox SuperDeluxe Select (205x60mm) |
||||
| FORK | RockShox Lyrik Base (160mm) |
||||
| HEADSET | FSA No.55R | ||||
| STEM | RaceFace Aefect R (40mm) | ||||
| HANDLEBAR | RaceFace Chester 35 XS/SM (780x20mm) MD/LG/XL/XXL (780x35mm) |
||||
| GRIPS | ODI Elite Flow Lock-On | ||||
| SADDLE | SDG Bel Air 3 | ||||
| SEATPOST | SDG Tellis XS(125mm) SM (150mm) MD (170mm) LG (200mm) XL (230mm) |
||||
| BRAKES | Shimano Deore M6120 4 Piston | ||||
| ROTORS | Shimano RT66 (203mm) | ||||
| SHIFTER | Shimano Deore M6100 iSpec EV | ||||
| DERAILLEUR | Shimano Deore M6100 SGS 12sp | ||||
| CASSETTE | Shimano Deore M6100 (10-51t) | ||||
| CHAIN | Shimano Deore M6100 | ||||
| CRANK | RaceFace Aeffect ETOR (165mm, X-Small 160mm) |
||||
| CHAINRING | E*Thirteen Helix Race Direct Mount (32t) | ||||
| RIMS | WTB ST i30 | ||||
| SPOKES | Pillar Double Butted | ||||
| HUBS | Novatec D791SB-B15/D902SB-B12 | ||||
| TIRE/FRONT | Maxxis Assegai 3C EXO/TR (2.5) | ||||
| TIRE/REAR | Maxxis Minion DHRII 3C EXO/TR (2.4) | ||||
| INCLUDED | Fazua Charger Tubeless Valves & Sealant |
||||
| COLOR OPTIONS |
|
||||
| WEIGHT | TBD |

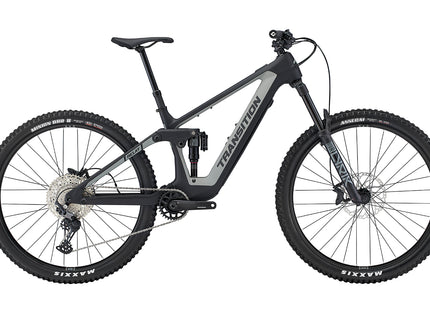

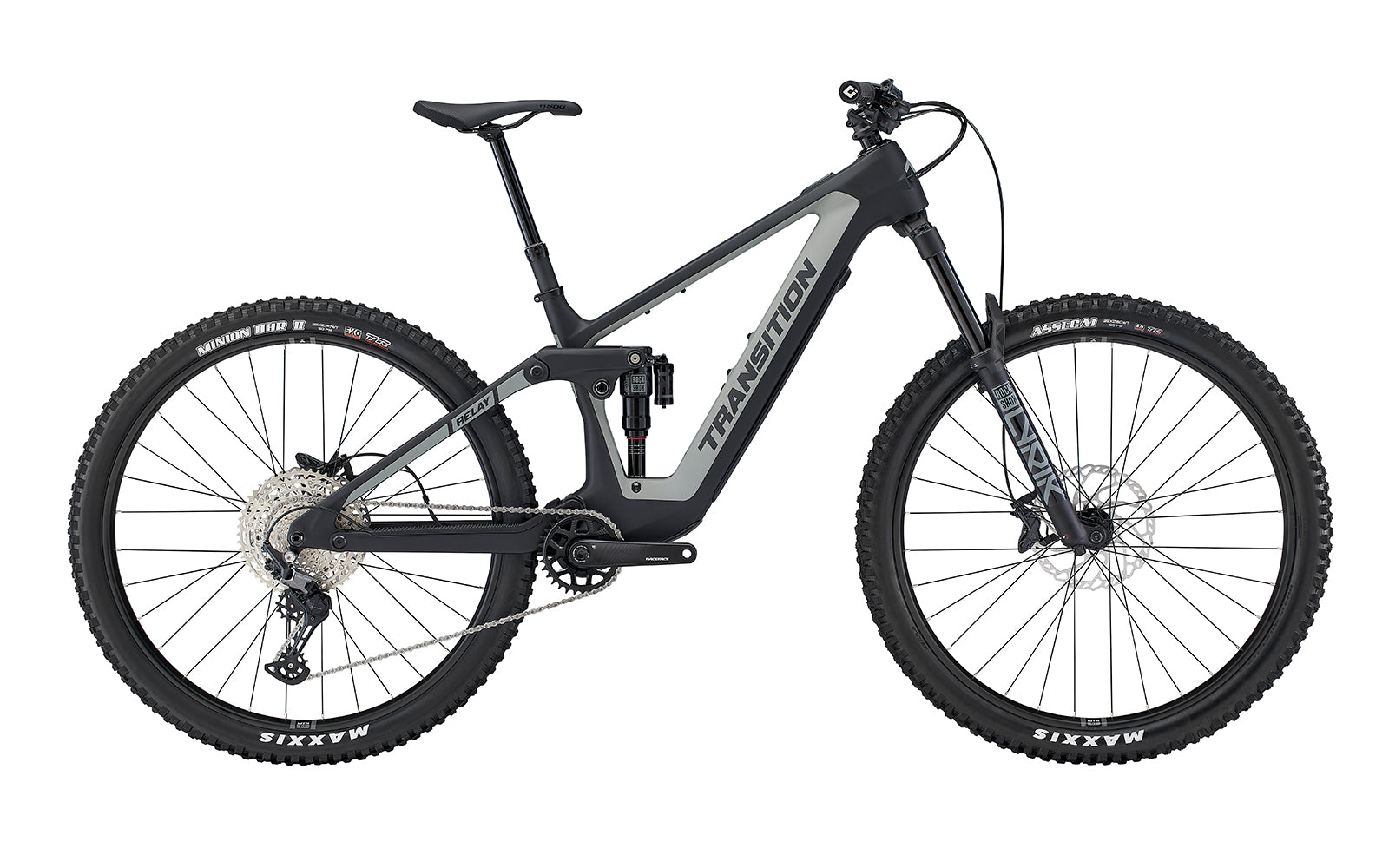

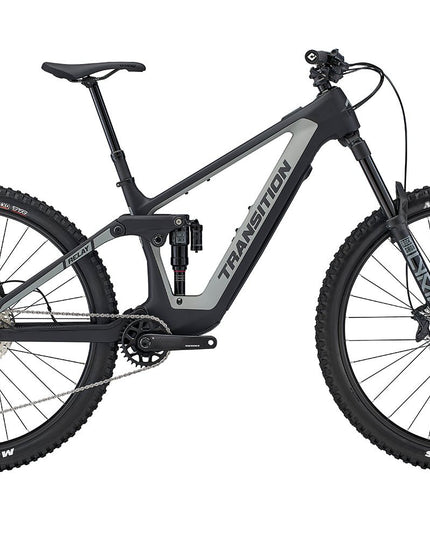

Transition Relay Carbon Deore
$7,499.00
Description
The Transition Relay Carbon Deore combines electric and traditional riding in a single frame. Lightweight, efficient, and quiet, it delivers a trail experience that feels natural and responsive, unlike typical eMTBs. Ready for any mountain biking adventure, you can easily switch to electric mode for extra power or remove the battery without tools for a pure mountain bike ride. Whether riding with friends on eMTBs or traditional bikes, the Relay adapts seamlessly to your style and terrain.
Specs:
| FRAME | Relay Carbon 160mm | ||||
| WHEEL SIZE | 29" (X-Small 27.5") | ||||
| DRIVE UNIT | Fazua Ride 60 | ||||
| BATTERY | Fazua Energy 430 Take Out | ||||
| DISPLAY | Fazua Top Tube LED Hub | ||||
| ASSIST SWITCH | Fazua Ring Control | ||||
| REAR SHOCK | RockShox SuperDeluxe Select (205x60mm) |
||||
| FORK | RockShox Lyrik Base (160mm) |
||||
| HEADSET | FSA No.55R | ||||
| STEM | RaceFace Aefect R (40mm) | ||||
| HANDLEBAR | RaceFace Chester 35 XS/SM (780x20mm) MD/LG/XL/XXL (780x35mm) |
||||
| GRIPS | ODI Elite Flow Lock-On | ||||
| SADDLE | SDG Bel Air 3 | ||||
| SEATPOST | SDG Tellis XS(125mm) SM (150mm) MD (170mm) LG (200mm) XL (230mm) |
||||
| BRAKES | Shimano Deore M6120 4 Piston | ||||
| ROTORS | Shimano RT66 (203mm) | ||||
| SHIFTER | Shimano Deore M6100 iSpec EV | ||||
| DERAILLEUR | Shimano Deore M6100 SGS 12sp | ||||
| CASSETTE | Shimano Deore M6100 (10-51t) | ||||
| CHAIN | Shimano Deore M6100 | ||||
| CRANK | RaceFace Aeffect ETOR (165mm, X-Small 160mm) |
||||
| CHAINRING | E*Thirteen Helix Race Direct Mount (32t) | ||||
| RIMS | WTB ST i30 | ||||
| SPOKES | Pillar Double Butted | ||||
| HUBS | Novatec D791SB-B15/D902SB-B12 | ||||
| TIRE/FRONT | Maxxis Assegai 3C EXO/TR (2.5) | ||||
| TIRE/REAR | Maxxis Minion DHRII 3C EXO/TR (2.4) | ||||
| INCLUDED | Fazua Charger Tubeless Valves & Sealant |
||||
| COLOR OPTIONS |
|
||||
| WEIGHT | TBD |
