Description
The Roval Rapide CLX III redefines aerodynamic wheel design with an asymmetrical rim profile engineered for maximum efficiency. The front rim's aggressive depth cuts through wind resistance where it counts, while the rear combines a shallower profile with lightweight carbon spokes to reduce rotational mass by 215g. This weight savings translates to quicker acceleration and responsive handling in any racing scenario. FlatStop Bead Hooks provide exceptional flat resistance—requiring 39% more force to compromise—ensuring reliability when pushing hard to the finish. Built for cyclists demanding speed without compromise across varied terrain and conditions.
| Category | Component | Specification |
|---|---|---|
| Rims | Wheel Size / ETRTO | 622 × 21 (700c) |
| Tubeless Compatibility | Yes | |
| Insert Compatibility | Yes | |
| Brake Compatibility | Disc (Centerlock) | |
| Rim Construction | Carbon clincher, hooked | |
| Valve Stem Length | Roval tubeless valve, alloy, 70mm | |
| Hole Count | Front: 18H / Rear: 24H | |
| Rear Rim | Rapide CLX III Carbon Clincher Rear, 700c (CR2471) | |

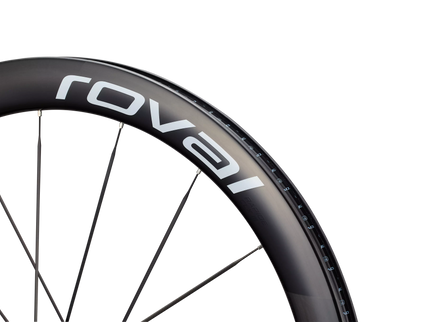

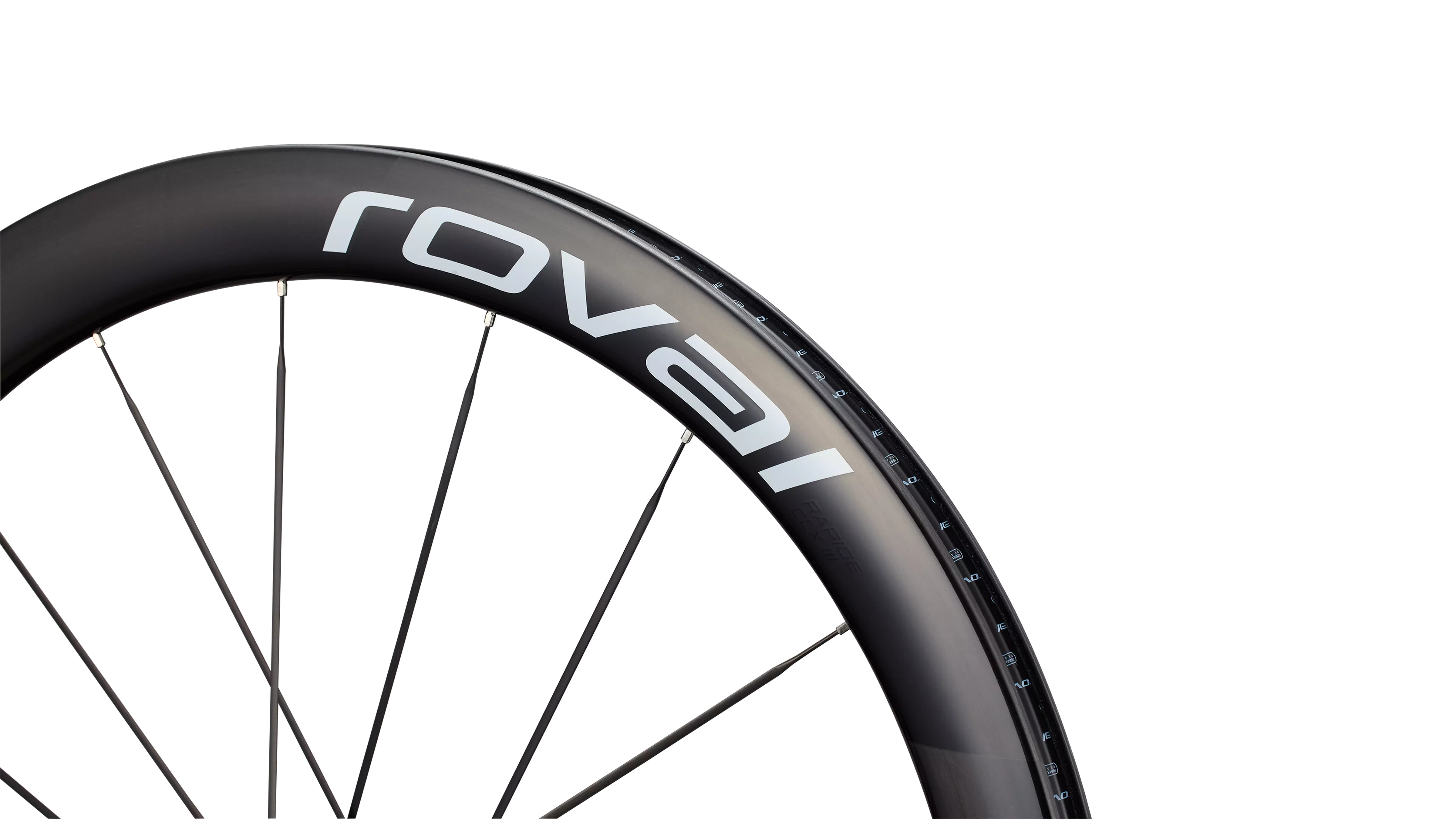

| Rear Rim Dimensions | Depth: 48mm; External width: 31.3mm; Internal width: 21mm; Bead hook width: 4.1mm | |
| Front Rim | Rapide CLX Team Carbon Clincher Front, 700c (CR2470) | |
| Front Rim Dimensions | Depth: 51mm; External width: 35mm; Internal width: 21mm; Bead hook width: 5.5mm | |

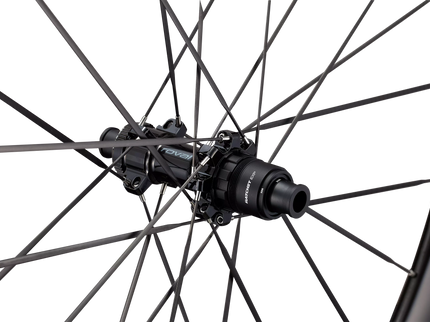

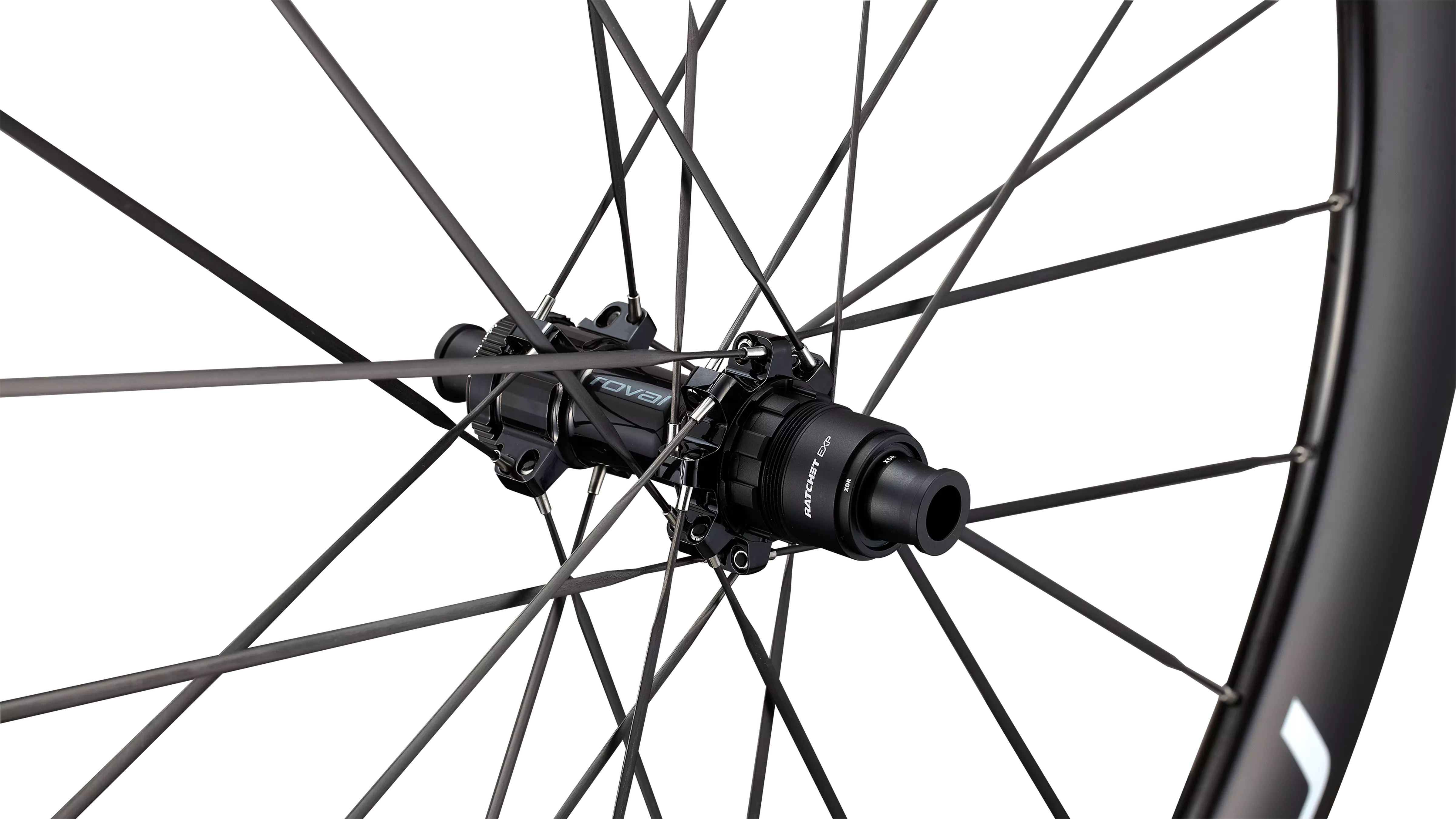

| Hubs | Rear Hub | Roval Low Flange Road Hub, Centerlock, 12x142mm (LF19-R) |
| Rear Freehub Body | DT Swiss Ratchet EXP (36T), SRAM XD-R | |
| Rear Hub Bearings | DT Sinc ceramic bearings — DS: 1526 (15×26×7mm), NDS: 6802 (15×24×5mm) | |

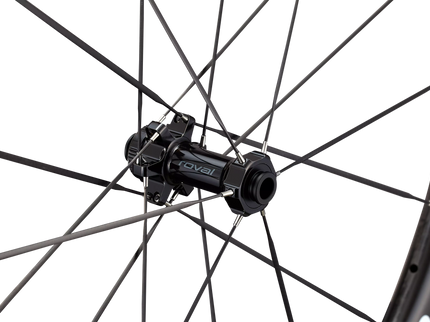

| Front Hub | Roval Low Flange Road Hub, Centerlock, 12x100mm, 19mm OD end caps (LF18-F) | |
| Front Hub Bearings | DT Sinc ceramic bearings — DS: 6802 (15×24×5mm), NDS: 6802 (15×24×5mm) | |
| Spokes & Nipples | Nipples | Arris MK4 alloy spoke nipples, 6mm |
| Rear Spokes | Roval by Arris composite aero spokes w/ titanium end pieces, T-head, 24 qty (DS: 277mm, NDS: 273mm) | |
| Rear Lacing Pattern | One-cross / three-cross (2:1), not tucked | |
| Front Spokes | Roval by Arris composite aero spokes w/ titanium end pieces, T-head, 18 qty (DS: 264mm, NDS: 274mm) | |
| Front Lacing Pattern | Two-cross / radial (2:1), not tucked | |
| Tire Info | Tubeless Tape Width | 25mm |
| Tire Type | Clincher tubeless and clincher tube type | |
| Designed Tire | RapidAir TLR, 28mm | |
| Approved Tire Widths | 24mm–38mm | |
| Max Pressure | Tubeless: 110psi; Tubed: 130psi; 36–38mm: Tubeless 60psi / Tubed 60psi | |
| Weight | Wheelset Weight | 1305g (with valves and tape) |
| Rear Weight | 705g (with valves and tape) | |
| Front Weight | 600g (with valves and tape) | |
| General | Warranty | Limited lifetime warranty |
| Assembly Method | Hand built | |
| Weight Limit | 275 lbs / 125 kg | |
| Certifications | ISO 5775-2, UCI approved | |
| E-Bike Approved | No | |
| Extras | Included | 4 extra spokes and nipples, Roval wheel bag, Shimano HG 11/12-speed road freehub & end caps (rear wheel only) |
Roval Rapide CLX III Wheel
Vendor Roval
$1,500.00
Description
The Roval Rapide CLX III redefines aerodynamic wheel design with an asymmetrical rim profile engineered for maximum efficiency. The front rim's aggressive depth cuts through wind resistance where it counts, while the rear combines a shallower profile with lightweight carbon spokes to reduce rotational mass by 215g. This weight savings translates to quicker acceleration and responsive handling in any racing scenario. FlatStop Bead Hooks provide exceptional flat resistance—requiring 39% more force to compromise—ensuring reliability when pushing hard to the finish. Built for cyclists demanding speed without compromise across varied terrain and conditions.
| Category | Component | Specification |
|---|---|---|
| Rims | Wheel Size / ETRTO | 622 × 21 (700c) |
| Tubeless Compatibility | Yes | |
| Insert Compatibility | Yes | |
| Brake Compatibility | Disc (Centerlock) | |
| Rim Construction | Carbon clincher, hooked | |
| Valve Stem Length | Roval tubeless valve, alloy, 70mm | |
| Hole Count | Front: 18H / Rear: 24H | |
| Rear Rim | Rapide CLX III Carbon Clincher Rear, 700c (CR2471) | |
| Rear Rim Dimensions | Depth: 48mm; External width: 31.3mm; Internal width: 21mm; Bead hook width: 4.1mm | |
| Front Rim | Rapide CLX Team Carbon Clincher Front, 700c (CR2470) | |
| Front Rim Dimensions | Depth: 51mm; External width: 35mm; Internal width: 21mm; Bead hook width: 5.5mm | |
| Hubs | Rear Hub | Roval Low Flange Road Hub, Centerlock, 12x142mm (LF19-R) |
| Rear Freehub Body | DT Swiss Ratchet EXP (36T), SRAM XD-R | |
| Rear Hub Bearings | DT Sinc ceramic bearings — DS: 1526 (15×26×7mm), NDS: 6802 (15×24×5mm) | |
| Front Hub | Roval Low Flange Road Hub, Centerlock, 12x100mm, 19mm OD end caps (LF18-F) | |
| Front Hub Bearings | DT Sinc ceramic bearings — DS: 6802 (15×24×5mm), NDS: 6802 (15×24×5mm) | |
| Spokes & Nipples | Nipples | Arris MK4 alloy spoke nipples, 6mm |
| Rear Spokes | Roval by Arris composite aero spokes w/ titanium end pieces, T-head, 24 qty (DS: 277mm, NDS: 273mm) | |
| Rear Lacing Pattern | One-cross / three-cross (2:1), not tucked | |
| Front Spokes | Roval by Arris composite aero spokes w/ titanium end pieces, T-head, 18 qty (DS: 264mm, NDS: 274mm) | |
| Front Lacing Pattern | Two-cross / radial (2:1), not tucked | |
| Tire Info | Tubeless Tape Width | 25mm |
| Tire Type | Clincher tubeless and clincher tube type | |
| Designed Tire | RapidAir TLR, 28mm | |
| Approved Tire Widths | 24mm–38mm | |
| Max Pressure | Tubeless: 110psi; Tubed: 130psi; 36–38mm: Tubeless 60psi / Tubed 60psi | |
| Weight | Wheelset Weight | 1305g (with valves and tape) |
| Rear Weight | 705g (with valves and tape) | |
| Front Weight | 600g (with valves and tape) | |
| General | Warranty | Limited lifetime warranty |
| Assembly Method | Hand built | |
| Weight Limit | 275 lbs / 125 kg | |
| Certifications | ISO 5775-2, UCI approved | |
| E-Bike Approved | No | |
| Extras | Included | 4 extra spokes and nipples, Roval wheel bag, Shimano HG 11/12-speed road freehub & end caps (rear wheel only) |
