Description
The RR build is a step up if you want to get even more out of your SLY. FOX suspension provides the 160mm Fox 36 29 Float Performance GRIP fork and a Fox Float X Performance EVOL shock. SRAM Code Bronze Stealth 4 piston brakes with 200mm rotors keep things from getting out of hand on the steeps, and Mavic E-CrossTrail SL 30mm wheels offer the best balance of compliance / rigidity out there. ONOFF have you covered with a selection of components from the all new S6 range and include a carbon fibre bar, a stem, grips and the Pija seatpost with lengths varying from 140mm to 210mm depending on frame size. The SLY RR comes in the gorgeous Black / Nimbus Grey / Tonic Gold colourway.
-
Frame
6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Forest, CNC lock-on, 135m
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm
Saddle
Fizik Terra Aidon X5 145m
Front brake
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims
Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes
Mavic 28 straight-pull double butted spokes
Rear hubFront hub
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bea
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
RingsCrankset
e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Rear derrailleurChain
Sram GX Eagle T-Type, 12s, Powerlock
Sram GX Eagle AXS T-Type,12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
45,6 lbs
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
BatteryMotor
Bosch Performance Line SX (20 Mph) GEN4 SMART SYSTEM Diagonal, Wide
Bosch Compact Powertube 400Wh

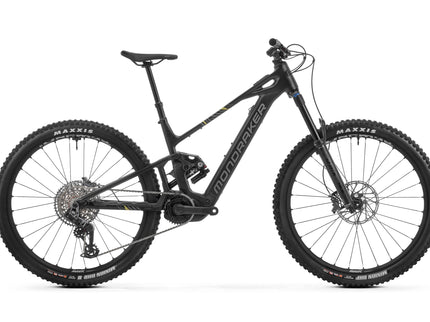

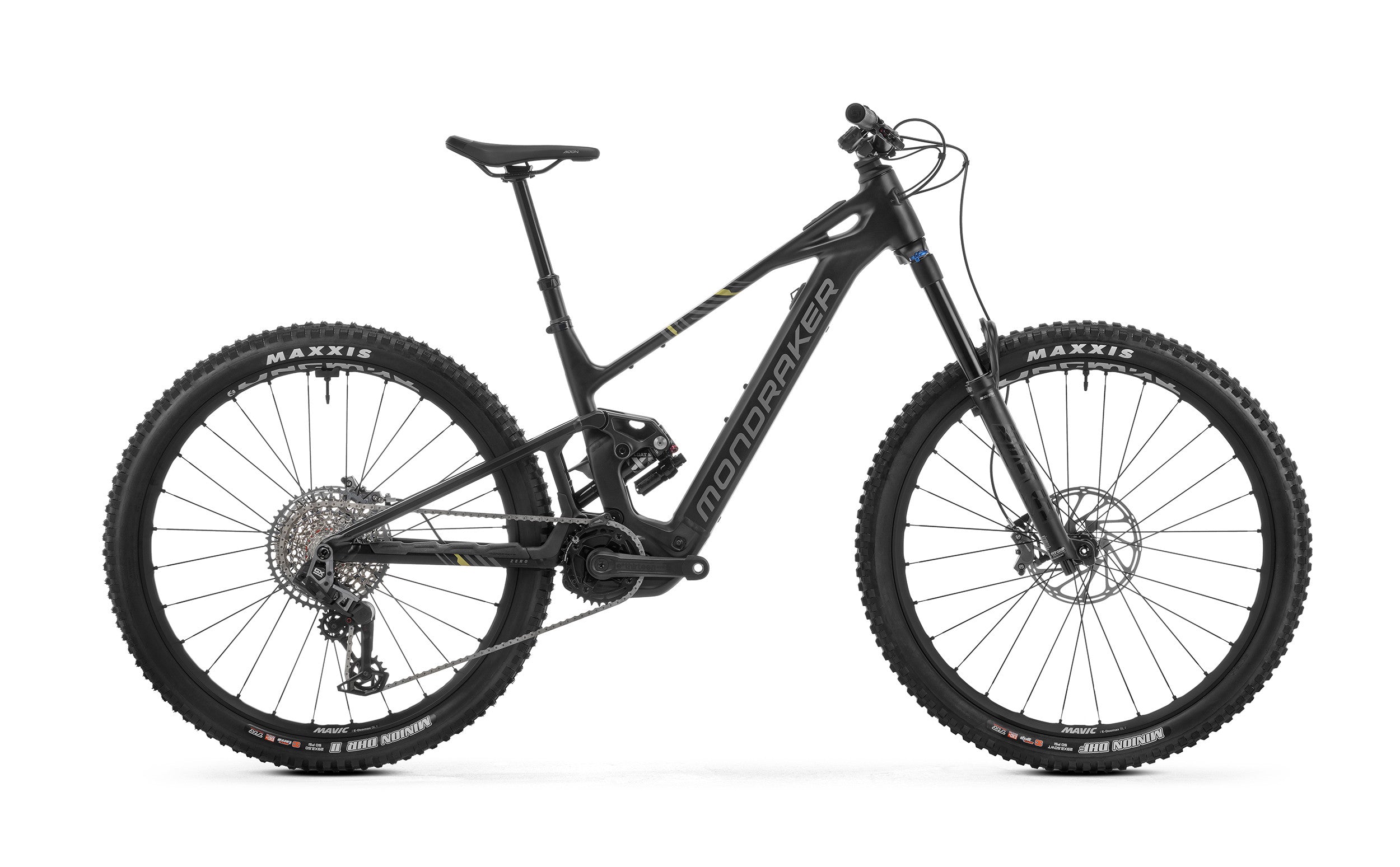

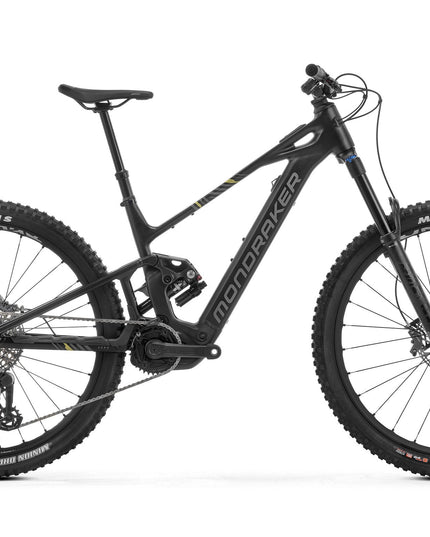

Mondraker SLY RR
$6,599.00
