Description:

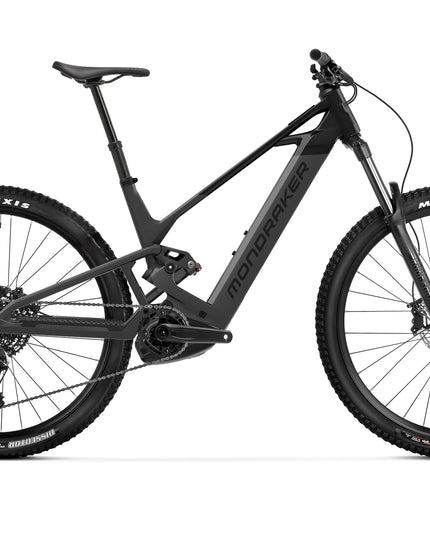

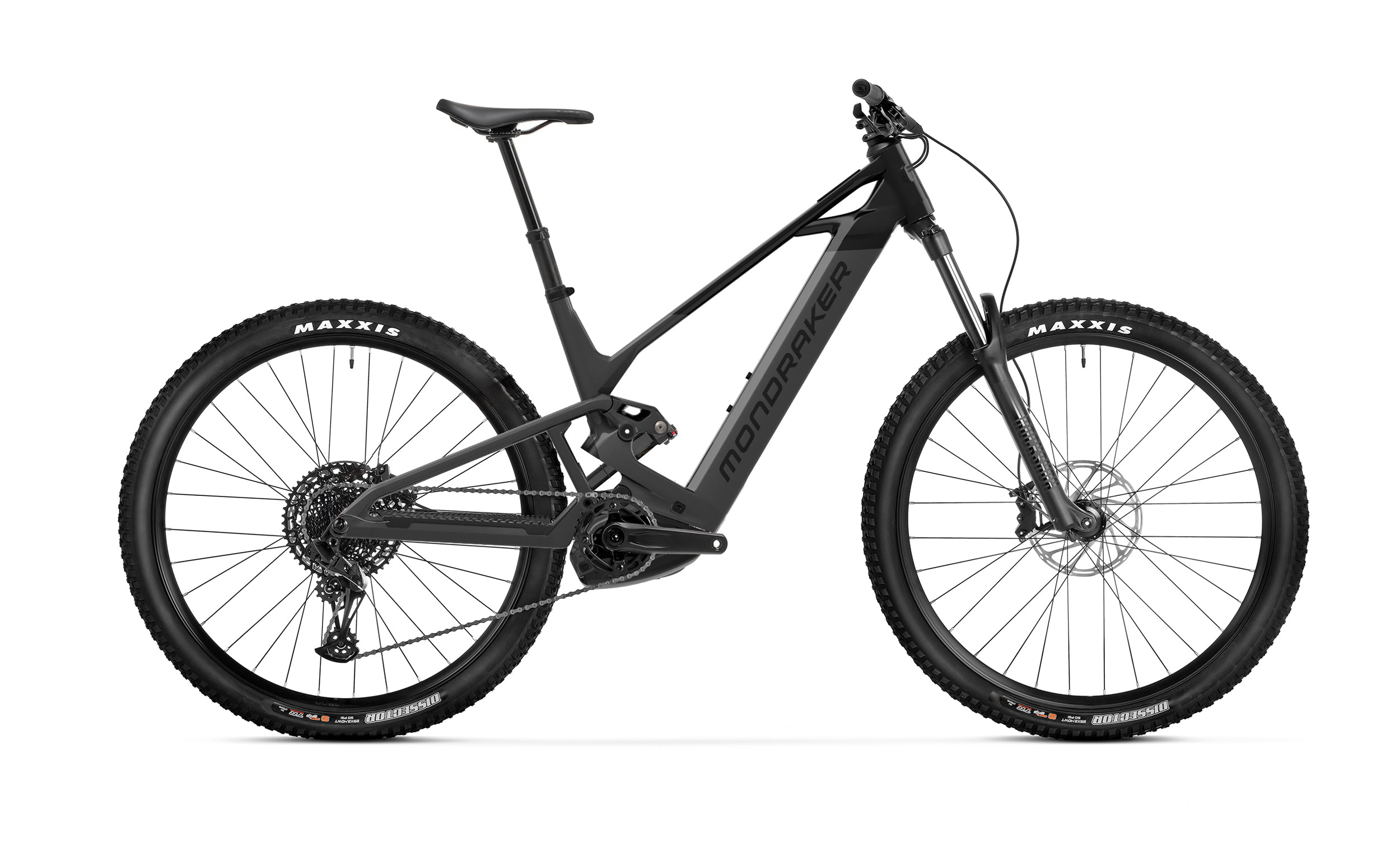

S600 Model
The ideal entry into the E-MTB world: removable 600Wh Bosch battery for plenty of ride time without complications, generous standover clearance, low center of gravity. Ideal for riders seeking versatility and confidence on the trail, without losing the Mondraker identity. Simple, playful and ready to get you wherever you want to go.
Bosch Performance Upgrade 2.0 for the Bosch CX-R motor.
From May 2026, this update will allow the maximum motor torque to be increased from 100 Nm to 120 Nm on any 5th-generation Bosch CX or CX-R motor, as well as increasing the maximum pedal assistance from 400% to up to 600%.
More torque to tackle the toughest climbs. More push in technical sections. More acceleration for those tricky sections. More power when the terrain gets tougher.
But the difference isn’t just in the numbers.
| Component | Specification |
|---|---|
| Frame | SCREE 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear shock | RockShox Deluxe Select DebonAir, 165x45mm. Low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Shock settings | C37 compression, R85 rebound, 4 Tokens |
| Fork | RockShox Psylo Silver 29, 150mm, Motion Control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Low-speed compression to lock, rebound, air preload |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without BlockLock |
| Stem | Onoff S6 30mm, 0°, 6061 forged alloy + CNC, 31.8mm bar bore |
| Handlebar | Onoff S6 1.0 7050 alloy, 25mm rise, 800mm width, 8° backsweep, 5° upsweep, 31.8mm bar bore. L/XL: 38mm rise |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L/XL: thicker size |
| Seatpost | X-Fusion Manic, 31.6mm diameter, 1X remote lever. S: 361x125mm; M: 425x150mm; ML: 469x170mm; L: 521x190mm; XL: 531x200mm |
| Saddle | Ergon SMC10 Gel |
| Front brake | SRAM DB6, 4-piston caliper, Centerline 200mm IS 6-bolt one-piece rotor, steel-backed organic pads |
| Rear brake | SRAM DB6, 4-piston caliper, Centerline 200mm IS 6-bolt one-piece rotor, steel-backed organic pads |
| Brake lever | SRAM DB6, tool reach adjustment, lever pivot bushings |
| Rims | WTB Sportterra Tough, 6061 welded aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | WTB straight-gauge spokes & black brass locking nipples |
| Front hub | WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6-bolt |
| Rear hub | WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6-bolt, HG freehub |
| Front tire | Maxxis Dissector 29x2.6, tubeless ready, 3C MaxxTerra compound, EXO+ protection, 60 TPI, folding bead |
| Rear tire | Maxxis Dissector 29x2.6, tubeless ready, 3C MaxxTerra compound, EXO+ protection, 60 TPI, folding bead |
| Crankset | E.13 Helix Core E*Spec Plus, 160mm all sizes |
| Rings | SRAM Eagle 34T T-Type, direct mount, steel, CL55 |
| Chain | SRAM 70 T-Type, 12s Flattop, PowerLock |
| Rear derailleur | SRAM 70 Eagle, T-Type, 12s |
| Shift levers | SRAM Trigger 70, 12s, T-Type Actuation |
| Cassette | SRAM XS-1270, 10–52T, 12s |
| Weight | 54.9 lbs |
| Display | Kiox 400C / Bosch Mini Remote |
| Motor | Bosch Performance Line CX (25 km/h), Smart System (BDU384Y) |
| Battery | Bosch Powertube 600Wh |
