Description
EBIKE POWER, NORMAL FEEL
The F-PLAY 26 delivers electric-assisted performance that mirrors the handling characteristics of traditional mountain bikes. Engineered alongside Mondraker's acclaimed F-Trick platform, this model employs identical kinematics, suspension geometry, and frame architecture to ensure responsive, nimble trail behavior. Its refined design integrates a 250Wh battery seamlessly within the downtube while maintaining a lightweight profile. The frame features Mondraker's signature window detail at the headtube junction and utilizes durable Alloy Stealth Evo construction throughout, creating a bike that feels natural and intuitive on technical terrain.
The F-PLAY 26 shares Mondraker's latest Zero Suspension System evolution, the same advanced platform found on the NEAT and F-PODIUM models. This refined suspension architecture enhances pedaling efficiency by translating input more directly into forward momentum while improving real-time trail feedback. The updated Zero system delivers measurable gains in acceleration response and power transfer, ensuring every pedal stroke contributes meaningfully to your ride. This suspension technology represents a significant step forward in e-mountain bike performance, optimizing the connection between rider input and bike behavior across varied terrain
The F-PLAY 26 integrates Mahle's E-Bikemotion X35 drivetrain, delivering 40Nm of torque paired with a 250Wh integrated battery. Three customizable assist modes—Eco, Urban, and Sport—adapt to your riding style and terrain demands, with fine-tuning available through the MySmartbike app. For extended adventures, an optional 210Wh range extender expands your riding distance without adding significant weight. This proven powertrain architecture mirrors the hardtail Play lineup, ensuring reliable performance and intuitive control across diverse trail conditions.| Category | Component | Specification |
|---|---|---|
| Frameset | Frame | F-Play 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one-piece bolt-on upper link, integrated internal non-removable battery, tapered head tube, HHG internal cable routing, BSA BB, QR 9mm rear axle, 1x drivetrain compatible |
| Sizes | One size: 350mm | |
| Suspension | Rear Shock | X-Fusion 02PRO R, 165x45mm, low-speed rebound, air preload, trunnion top, 50x8mm bottom bushings |
| Shock Settings | A-Tune light compression | |
| Fork | X-Fusion Velvet RL 26, 140mm, air spring, tapered steerer, 15x100mm axle, 32mm aluminum stanchions, 41mm offset, lockout, rebound, air preload | |
| Headset | Headset | Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom |
| Cockpit | Stem | Onoff Sulfur FG, 30mm, 0°, 6061 forged alloy, 31.8mm clamp |
| Handlebar | MDK XC 1.0, 6061 alloy, 25mm rise, 680mm width, 9° backsweep, 5° upsweep, 31.8mm | |
| Grips | Onoff Twin, single lock-on | |
| Seatpost | Onoff Pija dropper, internal routing, 31.6mm diameter, 1X remote lever, 405x95–125mm | |
| Saddle | SDG Fly JR | |
| Brakes | Front Brake | SRAM G2 R, 4-piston, Centerline 180mm IS 6-bolt rotor, steel-backed organic pads |
| Rear Brake | SRAM G2 R, 4-piston, Centerline 160mm IS 6-bolt rotor, steel-backed organic pads | |
| Brake Lever | SRAM G2 R, tool-free reach adjust, lever pivot bushings | |
| Wheels & Tires | Rims | MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32h |
| Spokes | CN round stainless steel | |
| Front Hub | DA210FS02, 15x100mm, cup & cone ball bearings, IS 6-bolt | |
| Rear Hub | Mahle-Ebikemotion X-35, HG freehub | |
| Front Tire | Kenda Regolith, 26x2.4, 120 TPI, folding, tubeless ready | |
| Rear Tire | Kenda Regolith, 26x2.4, 120 TPI, folding, tubeless ready | |
| Drivetrain | Crankset | SRAM SX Eagle, DUB axle, direct-mount chainring, 155mm |
| Chainring | 30T steel, X-Sync | |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm | |
| Pedals | SDG Slater JR | |
| Chain | SRAM SX Eagle, 12-speed, PowerLock | |
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, Cage Lock, long cage, 1x12 | |
| Shift Levers | SRAM Trigger SX Eagle, 12-speed, X-Actuation 1:1 | |
| Cassette | SRAM PG-1230, 11-50T, 12-speed | |
| Derailleur Hanger | Mondraker M077 | |
| E-Bike System | Motor | Mahle-Ebikemotion X-35 |
| Battery | Mahle-Ebikemotion Internal, 250Wh | |
| Display | Mahle-Ebikemotion | |
| Weight | Weight | 37.5 lb |

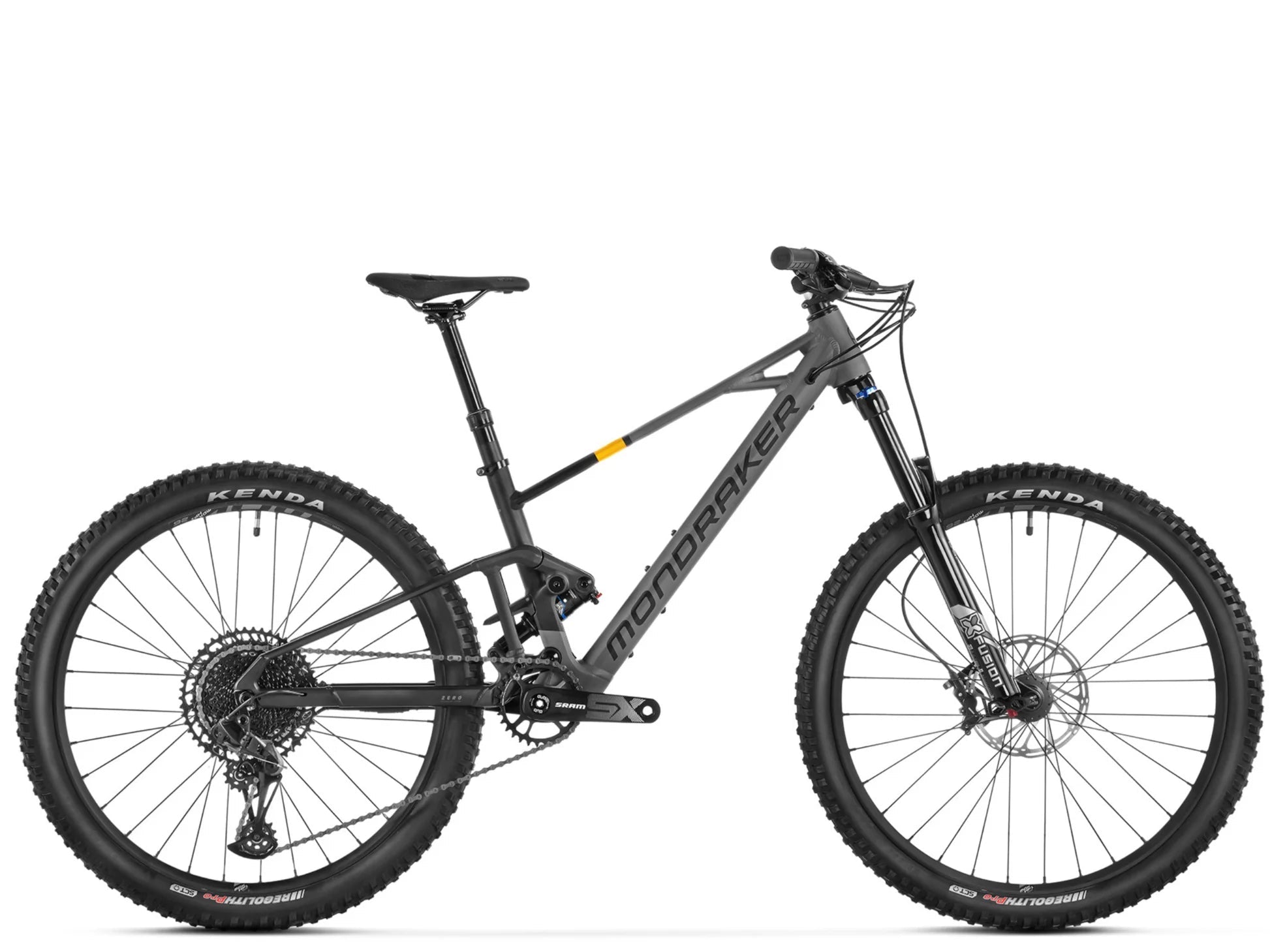

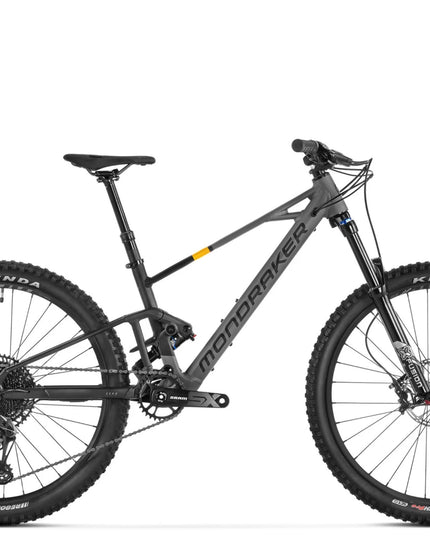

Mondraker F-PLAY 26 Nimbus Grey
$4,399.00
