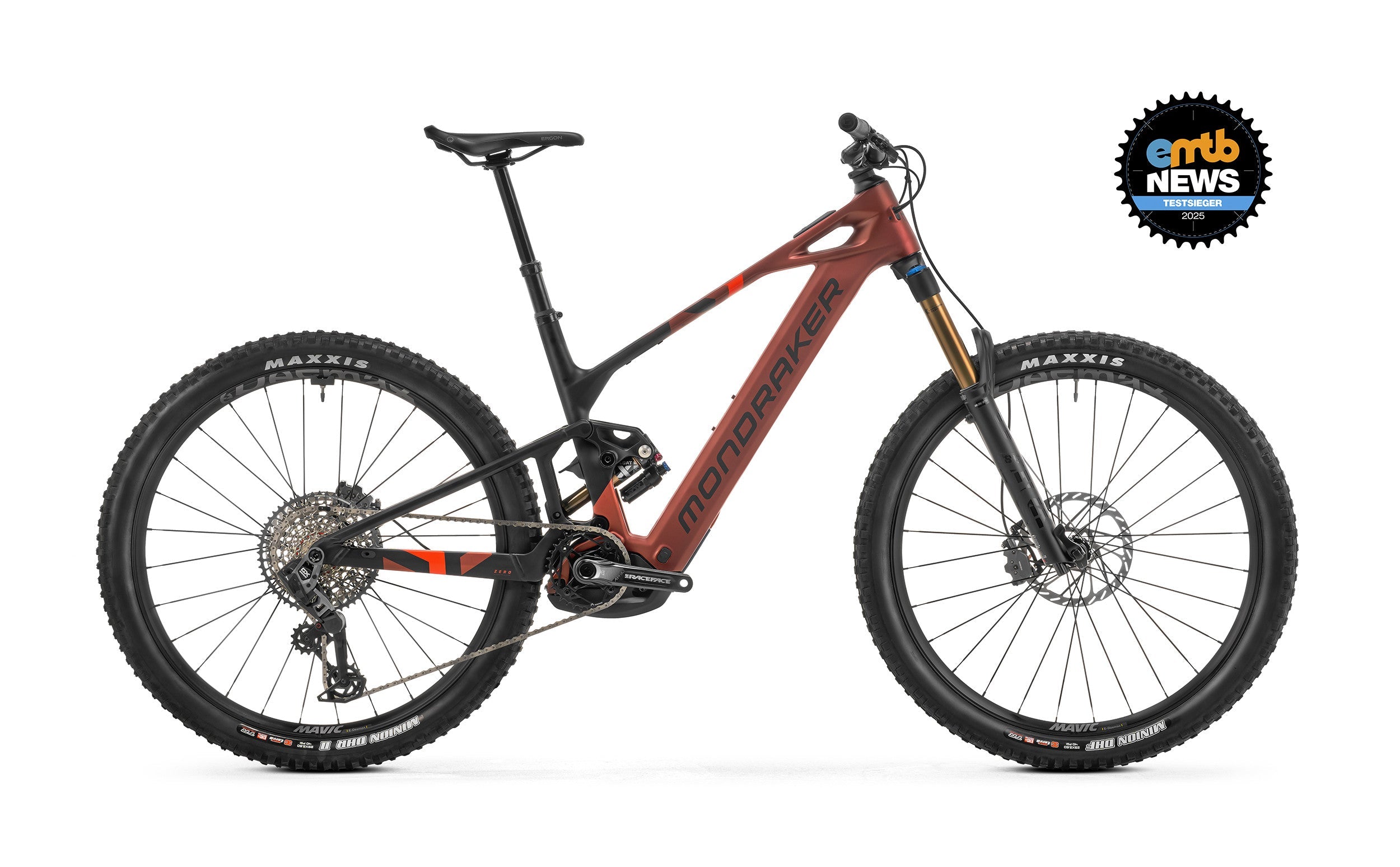

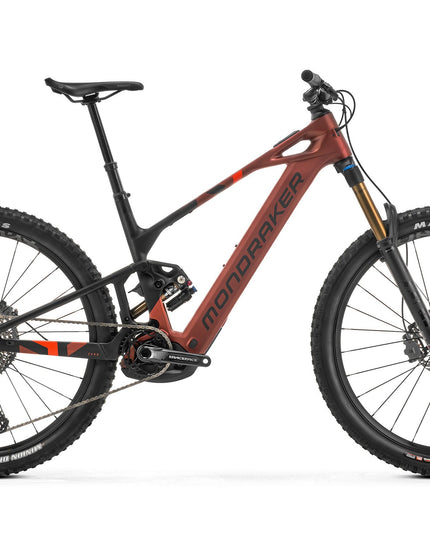

Crafty Carbon RR takes things up a notch when it comes to components, being the first bike in the range to offer SRAM’s wireless GX AXS drivetrain and Fox suspension front and rear with their patented Kashima coating. It also comes with the much talked about SRAM Maven brakes and Bosch’s new 800Wh battery. The RR comes in the spectacular Earth Red / Black / Flame Red paint scheme. ONOFF components have you covered for bars, stem and the Pija dropper post in different lengths dependent on frame size.
Frame
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Forest, CNC lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon SM-10
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
Race Face Aeffect-R ebike, 160mm
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram GX Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
53,8 lbs
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor
New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
