Description

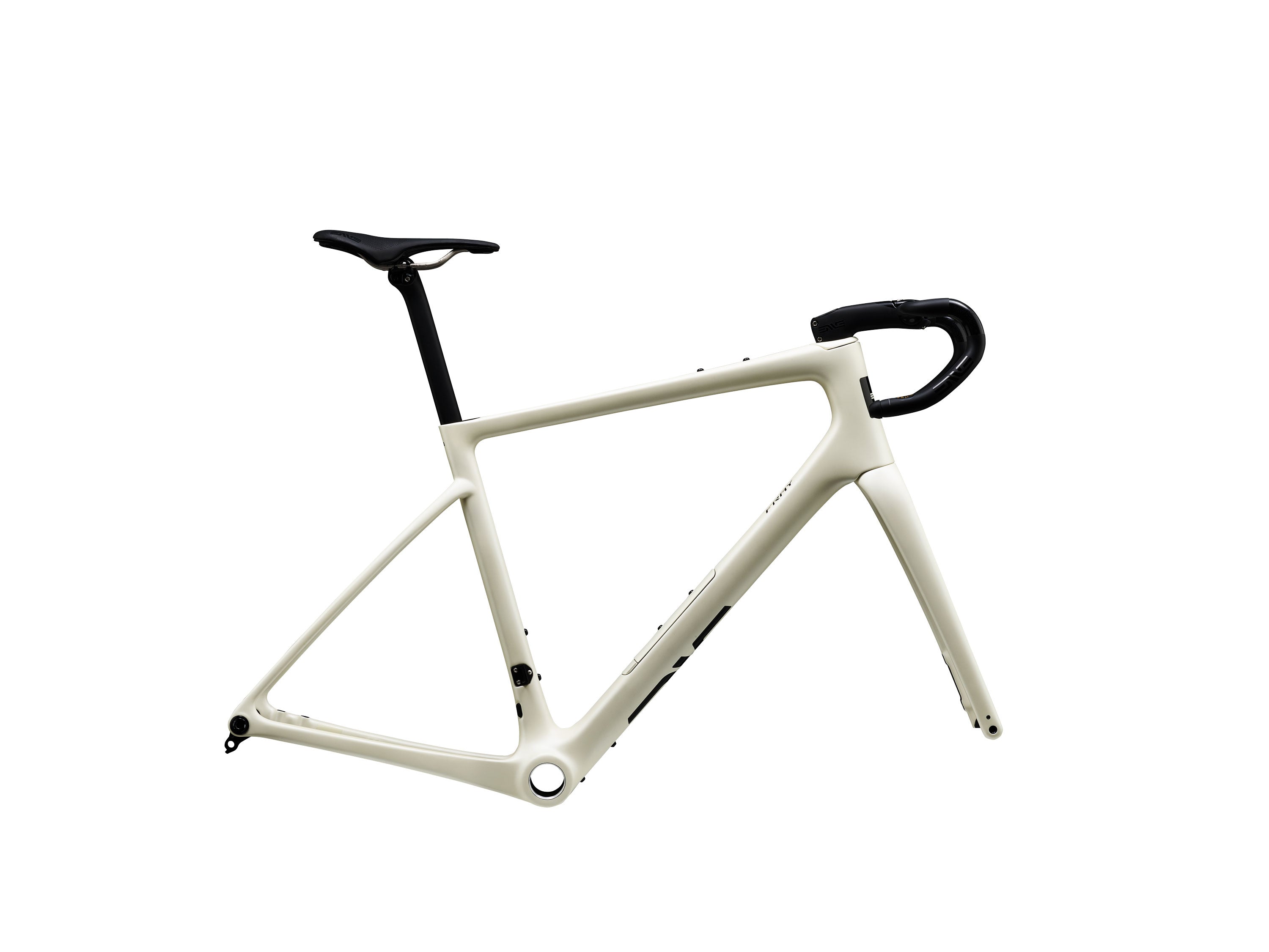

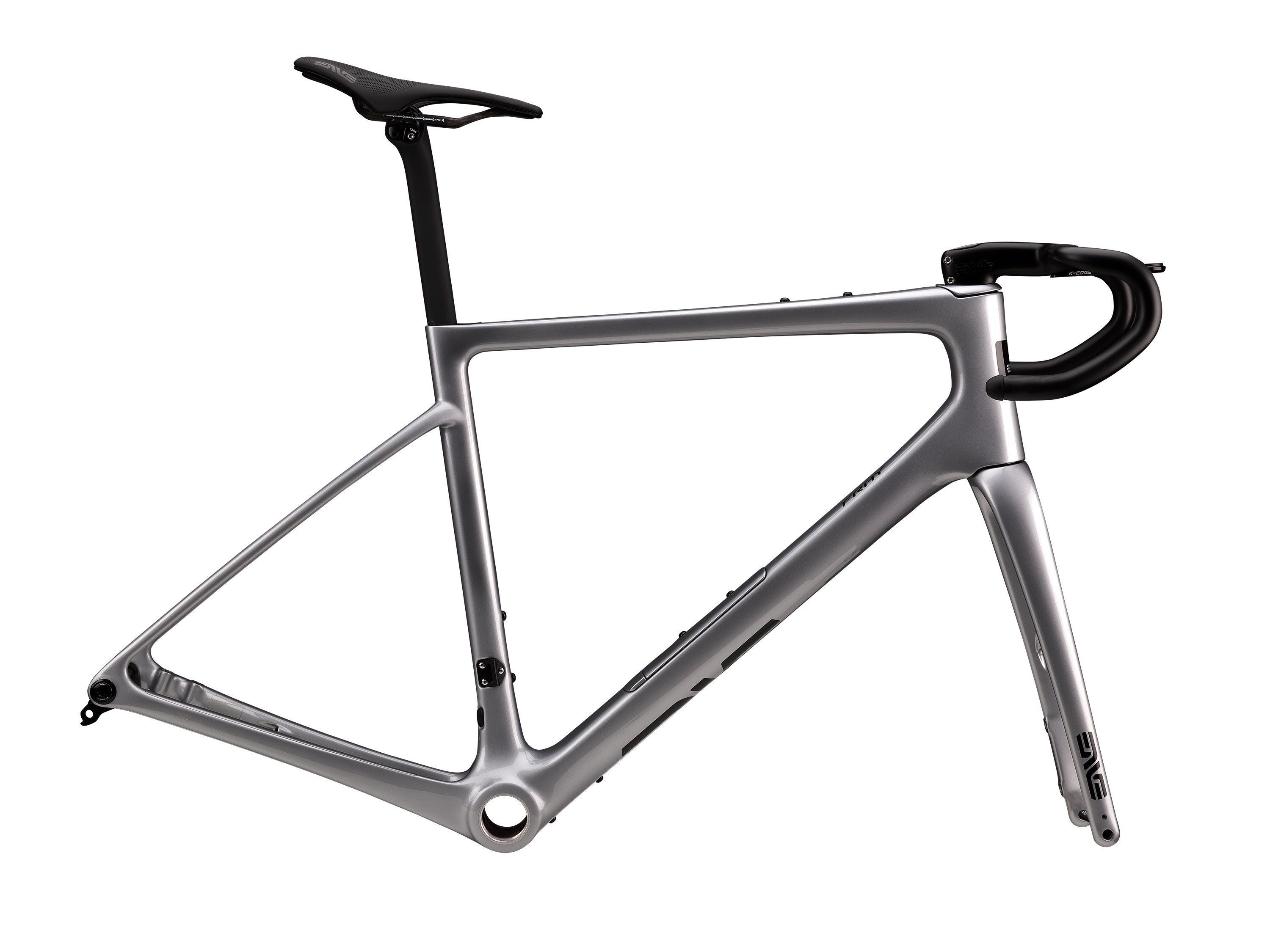

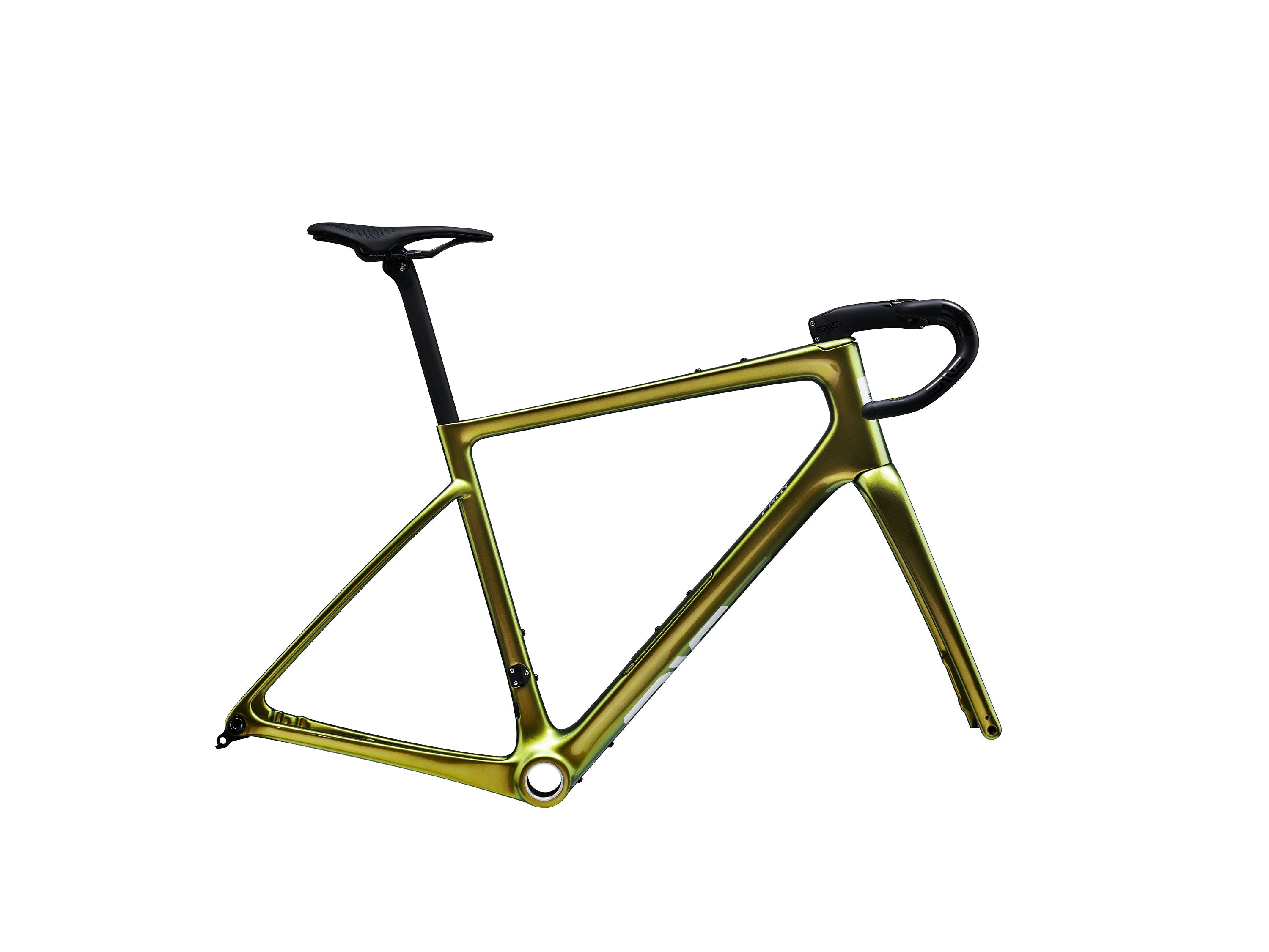

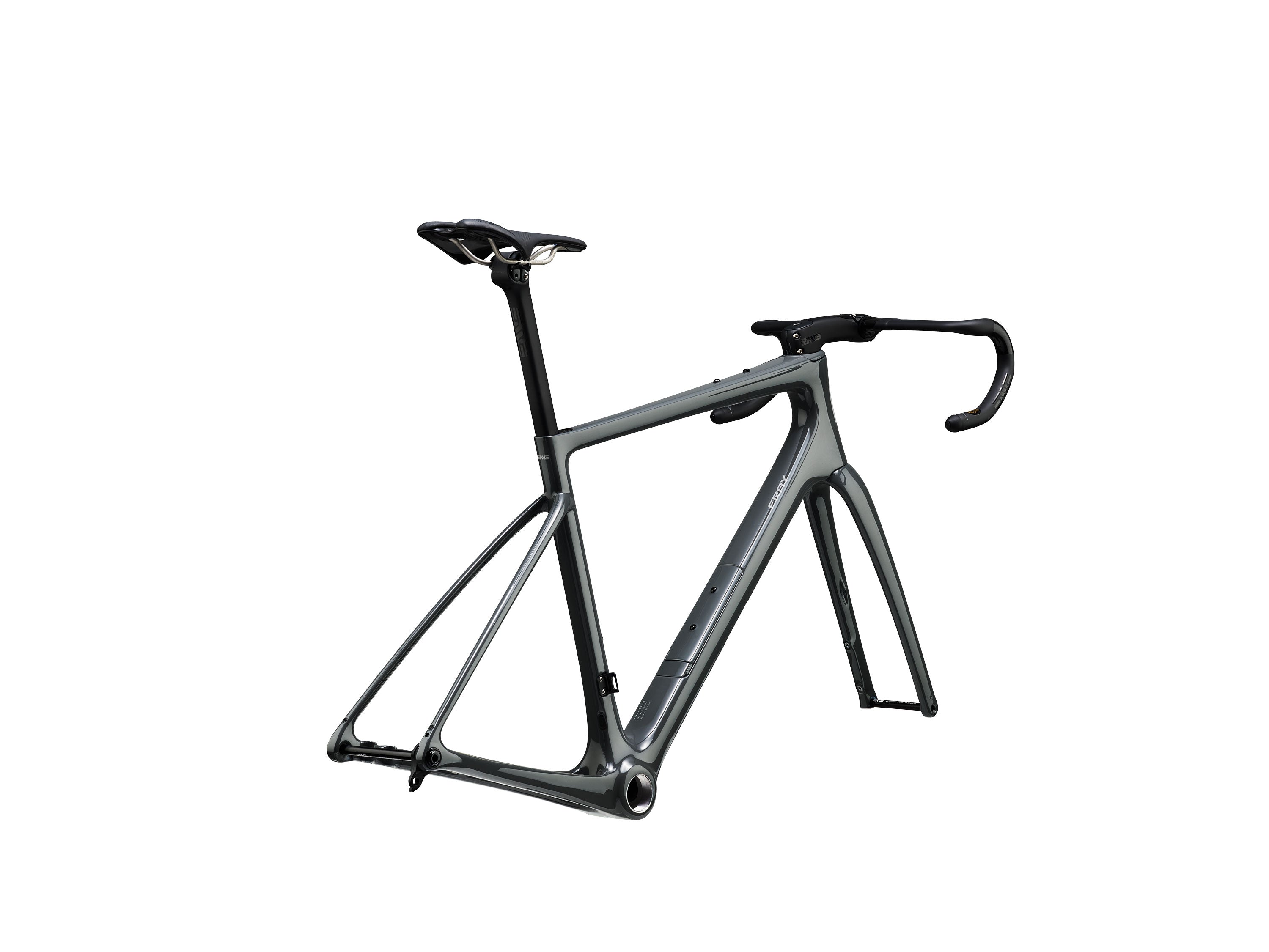

This is a frame only. The Fray is sold as a chassis which includes your choice and size of an Enve stem, bar and seatpost for $5500.

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

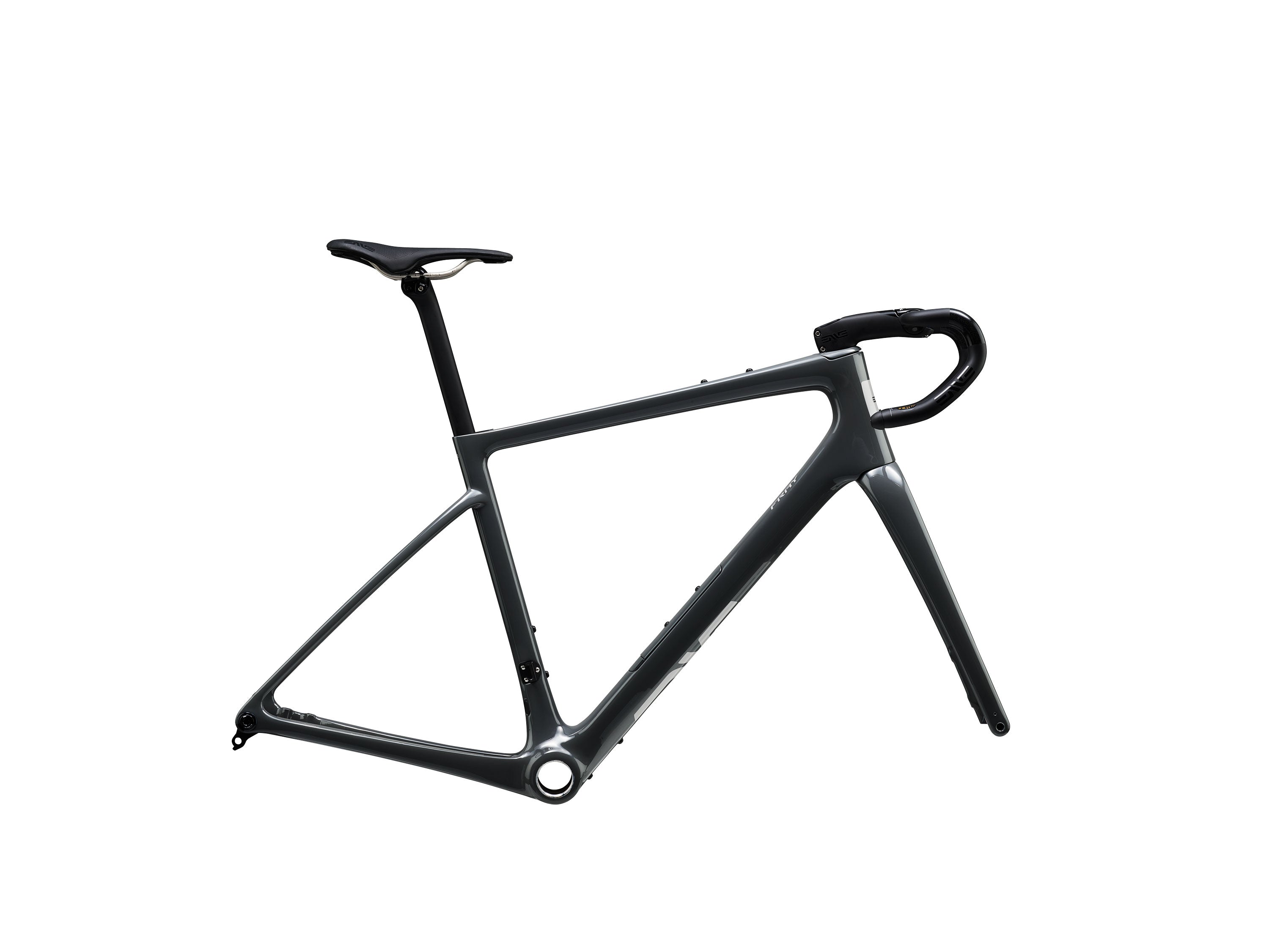

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

Product Details

  • Real-World Fast™ aero optimization
  • Geometry optimized for 31mm - 35mm tires
  • Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)

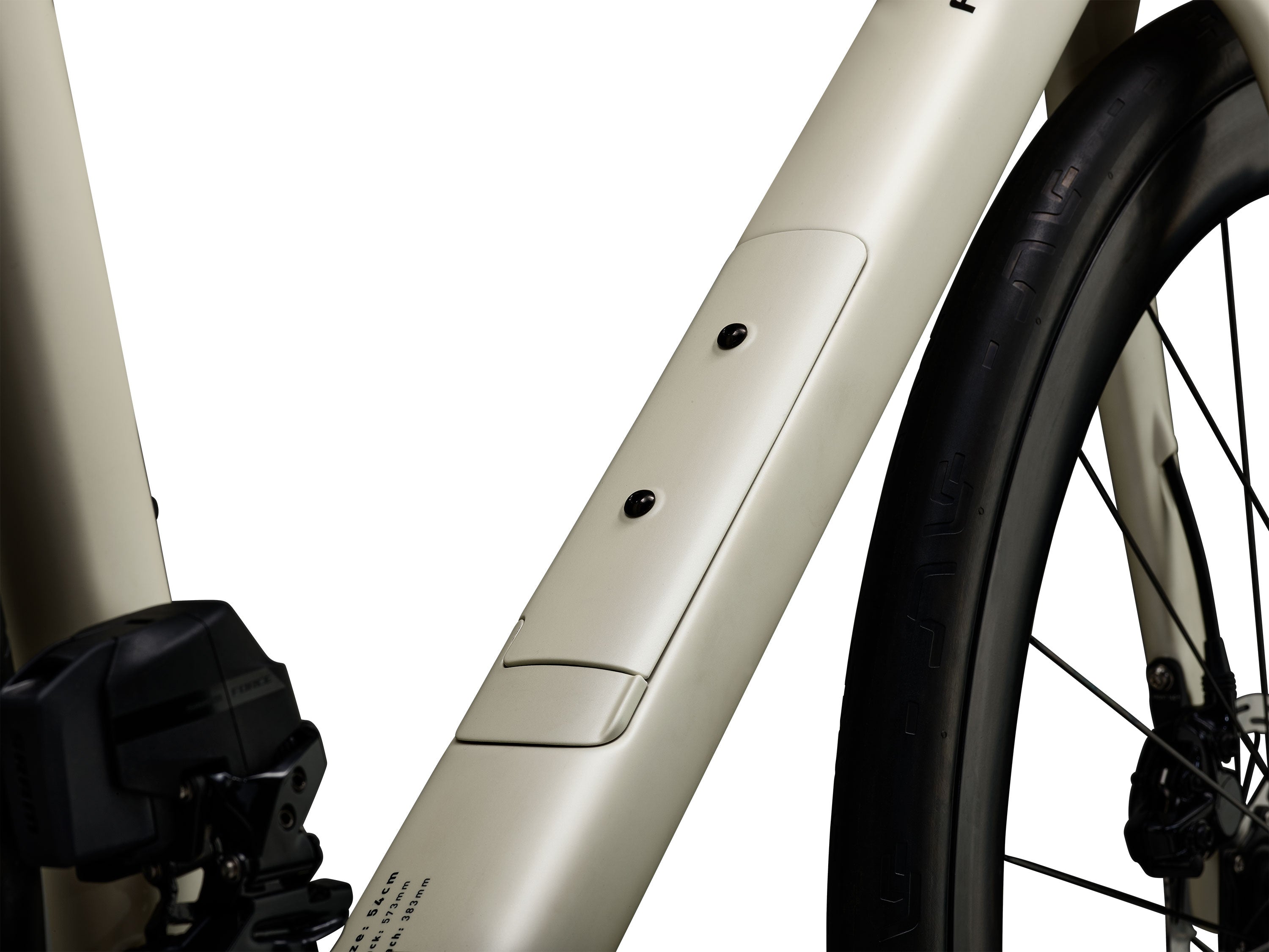

  • ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
  • Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
  • Aero tube shapes & design that complements SES rim shapes

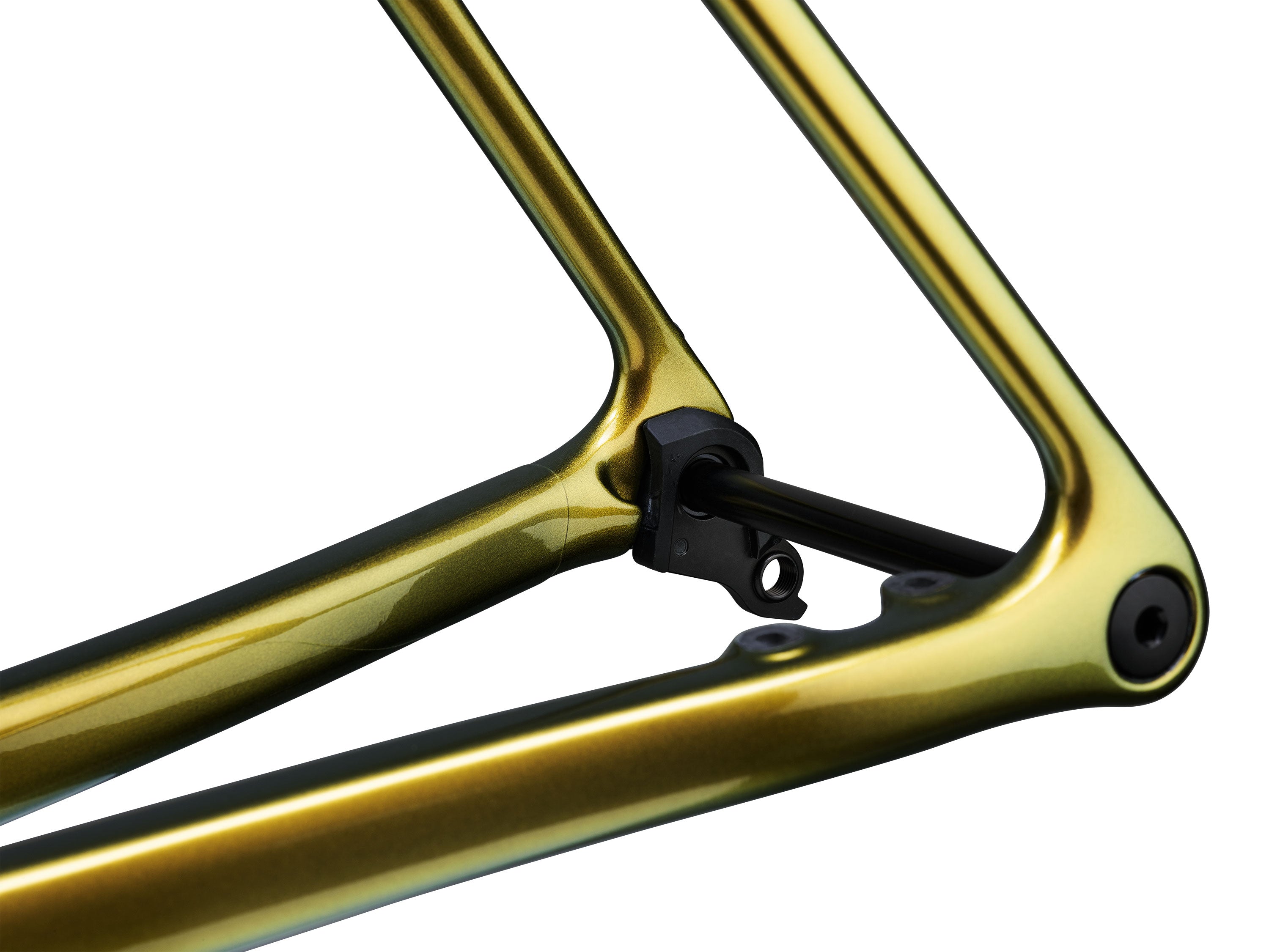

  • Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
  • Frame Weight 900g (Size 56cm Painted, No Hardware)

Specs

Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43
Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51,
56cm/47, 58cm/47, 60cm/43
Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware)

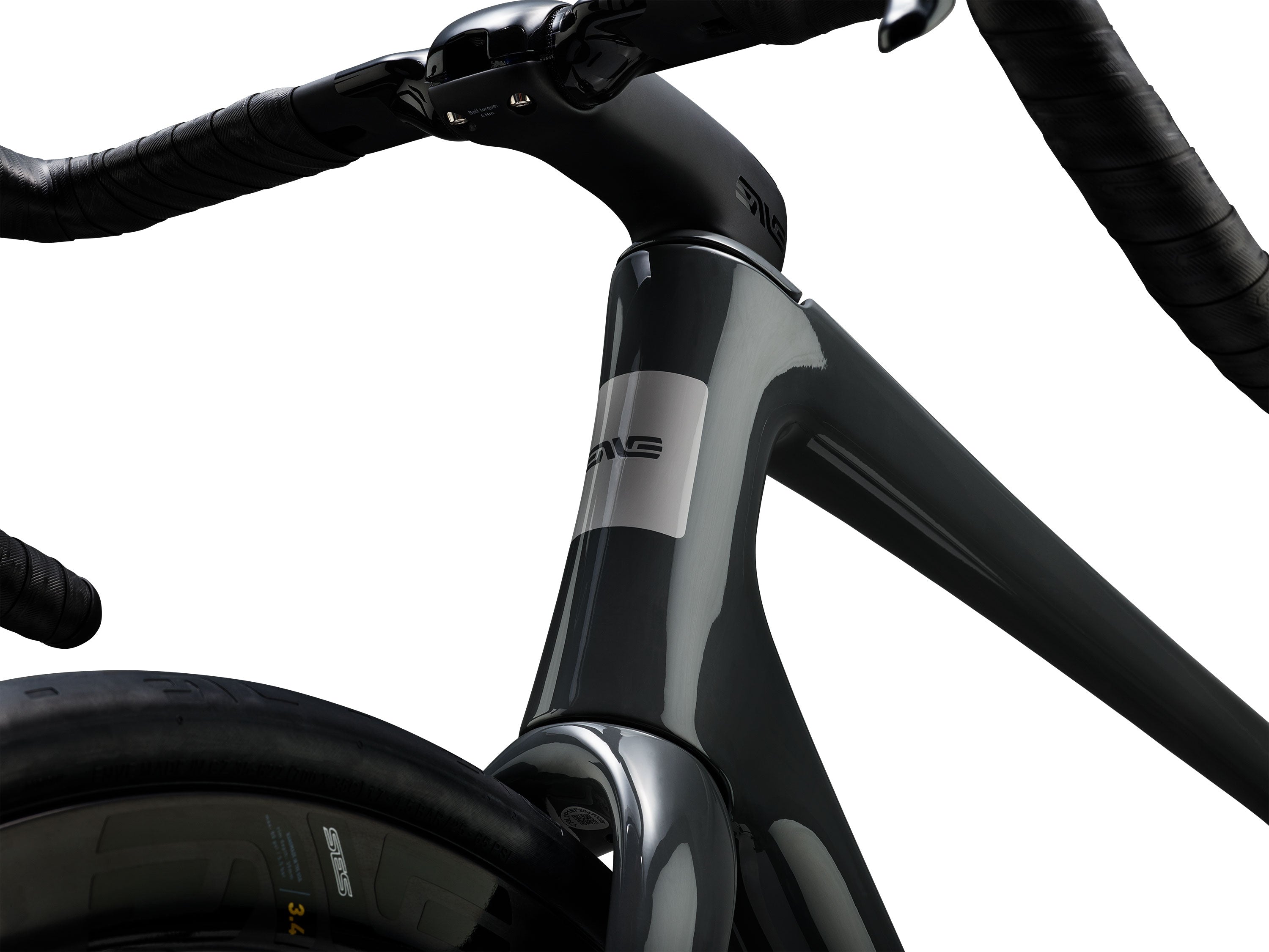

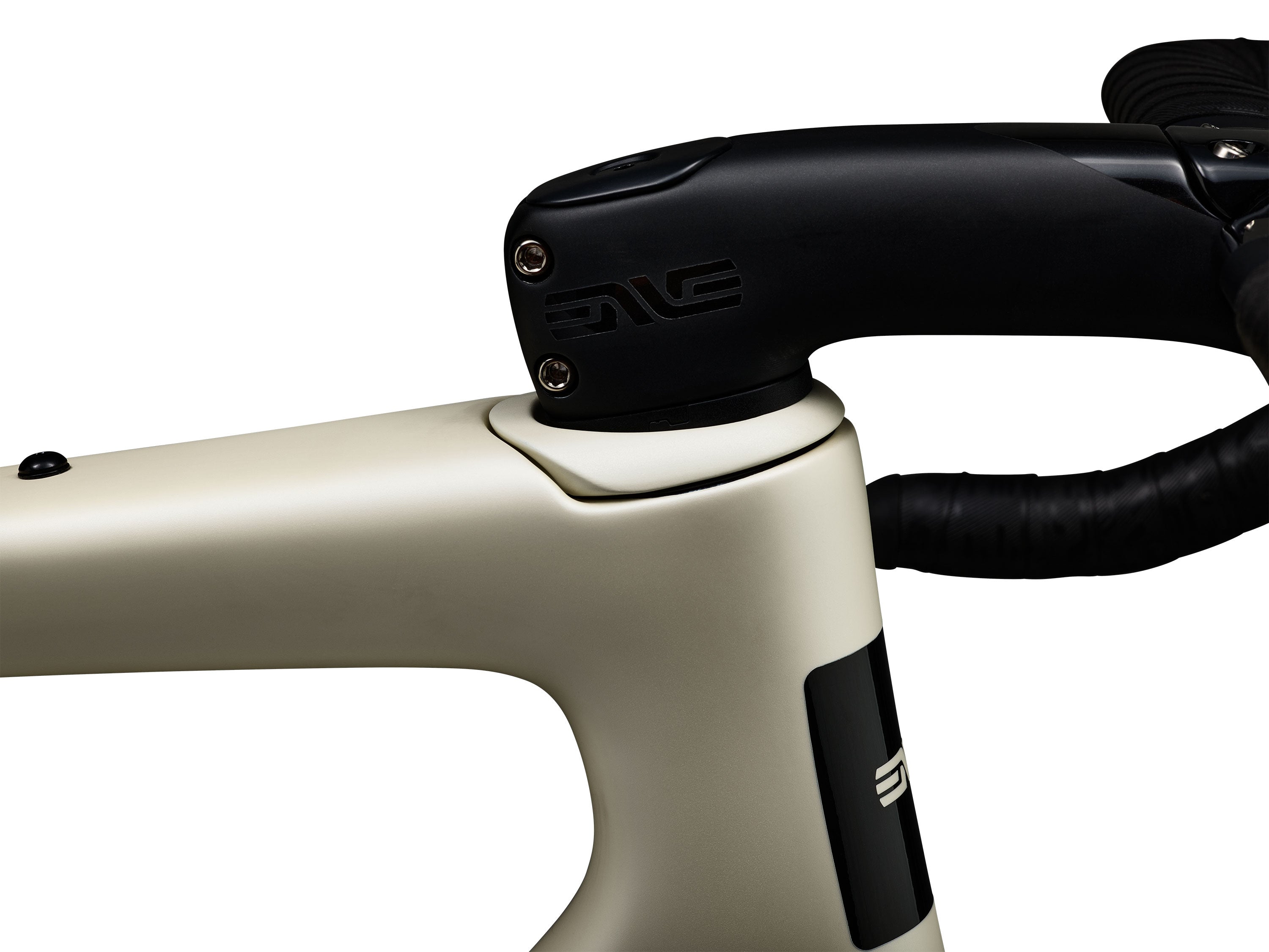

Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter ENVE Aero

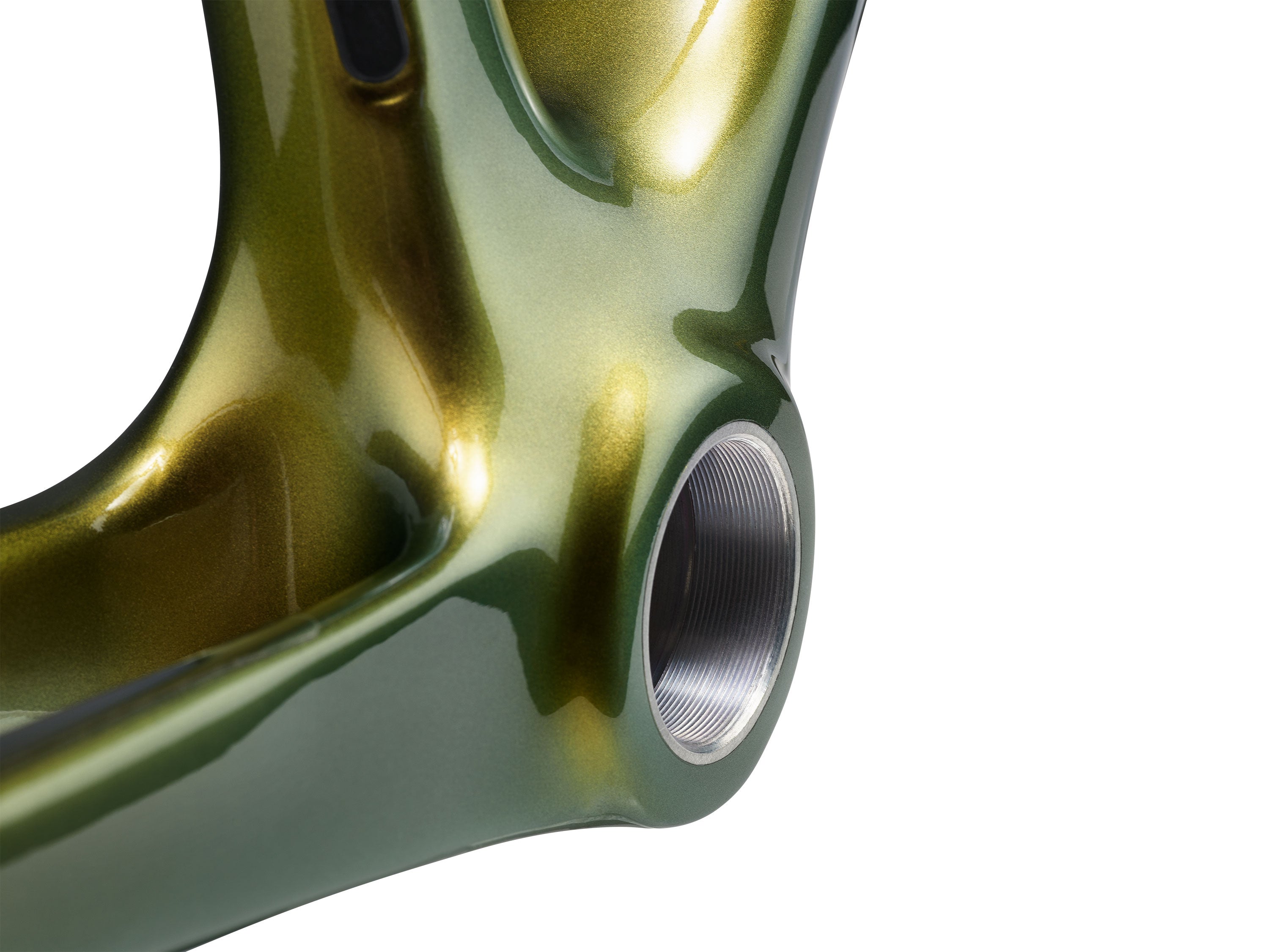

BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 27mm
Optimal Tire Size 31mm - 35mm
Maximum Listed Tire Clearance 1x 40mm
Maximum Listed Tire Clearance 2x 38mm
In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing Internal
Waterbottle Capacity 3
Top Tube Mounts Yes
Fender Compatible Yes
Wheel Size 700c
Product form

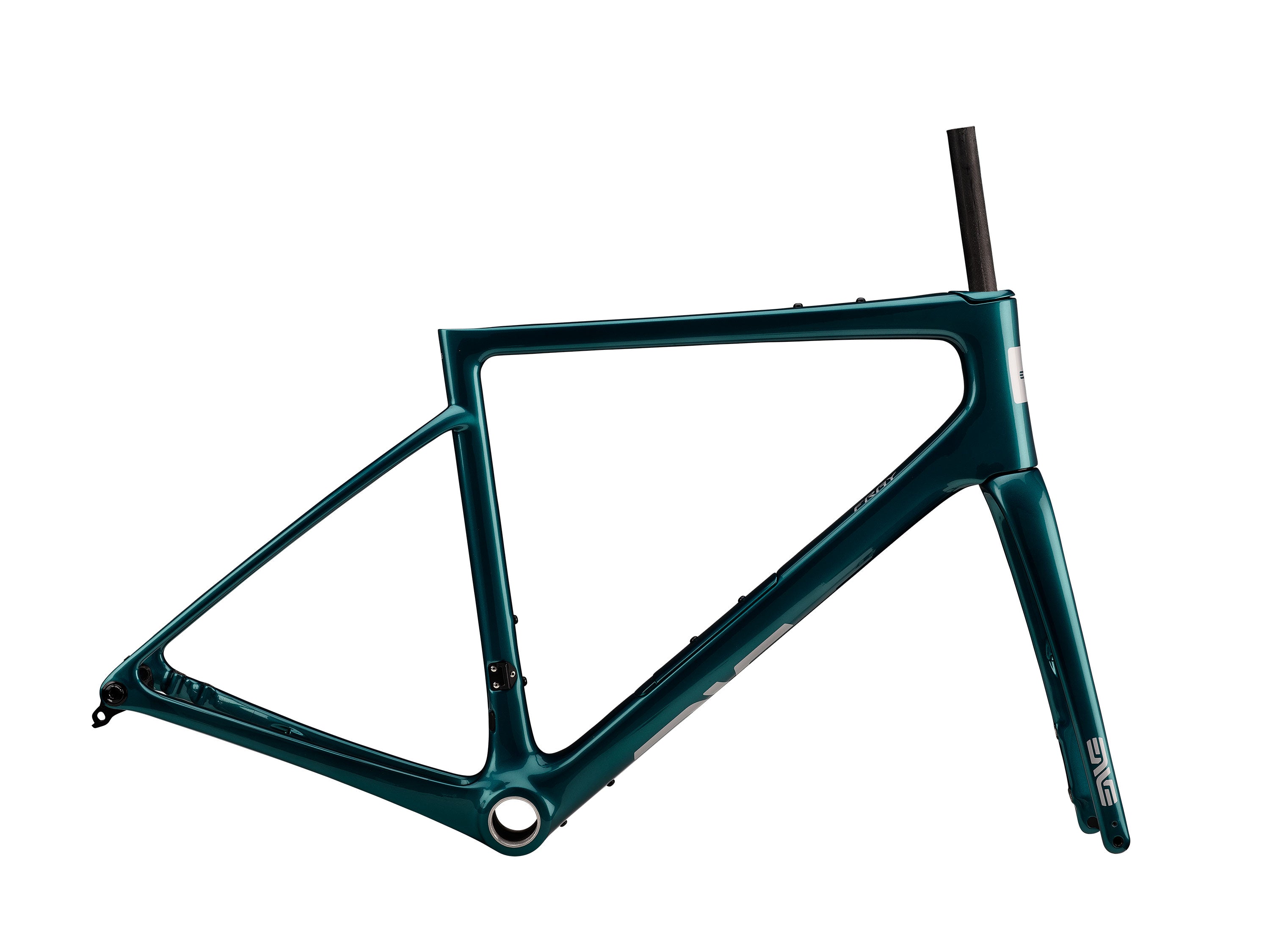

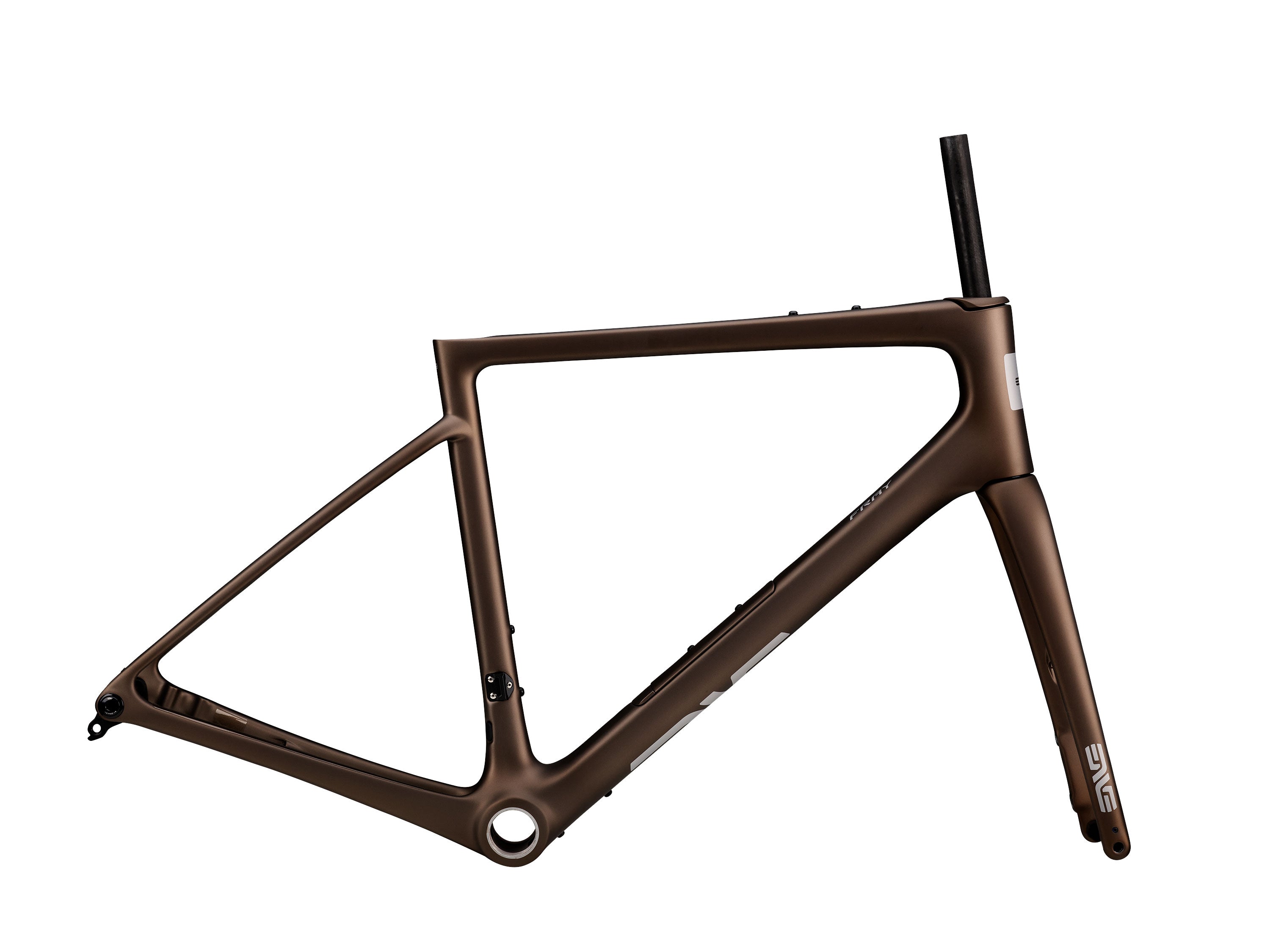

Enve Fray Frameset

$4,500.00

SKU: 210000066363

Online inventory doesn't represent everything that's in-store. Contact us for specific product availability.


    1 in stock Most ordered are processed in 1-2 business days and are shipped with UPS ground, USPS Ground Advantage, or USPS First Class. Call for expedited shipping


    • Shipped today? Order within: Jun 16, 2024 17:00:00 -0700
