Description
Built for riders who demand both speed and adaptability, the AR40 joins ENVE's Foundation collection as a refined all-rounder. Its 40mm rim profile balances aerodynamic efficiency with real-world handling across varied terrain, while the 25mm internal width accommodates modern tire geometries for optimal performance. Whether you're chasing watts on tarmac or exploring gravel, the AR40 delivers the engineering precision and durability that defines ENVE's wheelset philosophy.
- Ultimate versatility for the on and off-road rider
- 1515g Wheelset Weight Avg. (+/- 3%)
- Inner Rim Width: 25mm
- Aero optimized tire size: 27mm*
- Tested and qualified to ENVE's gravel standards
- For Use With Tubeless Tires Only
*Tire must be Tubeless and listed as "Approved/Recommended" on ENVE's Tire Compatibility Page.
| SPEC TABLE | FRONT | REAR |
| Spokes | Sapim CX-Ray J-Bend | |
| Hub | ENVE INNERDRIVE - Foundation | ENVE INNERDRIVE - Foundation |
| Hub Spacing | Front: 12x100 | Rear: 12x142 | |
| Nipples | Alpina Nylock Brass | |
| Spoke Tension | 120kgf | |
| Brake Type | Centerlock | |
| SPEC TABLE | FRONT | REAR |
| Effective Rim Diameter (ERD) | 579mm (+/- 3mm) | |
| Internal Rim Width | 25mm | |
| Sidewall Width | 3.6mm | |
| Pinch Flat Technology | Wide Hookless Bead | |
| Hole Count | 24h | |
| Depth | 40mm | |
| Tubeless Tape Width | 29mm | |
| Tubeless Valve Length | 61mm | 61mm |
| Spoke Tension | 120kgf | |
| Brake Type | Centerlock | |
| Spacing | Front: 12x100 | Rear: 12x142 | |
| SPEC TABLE | FRONT | REAR |
| Rim Weight | 425g | 425g |
| Wheel Weight | 690g | 825g |
| Wheelset Weight | 1515g (Includes Tape and Valves - HG Freehub) | |

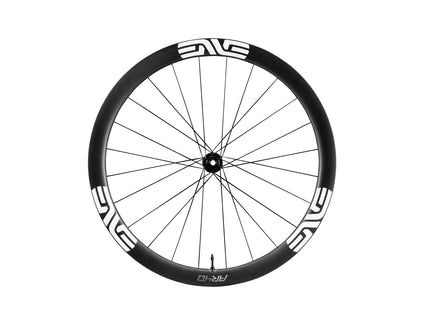

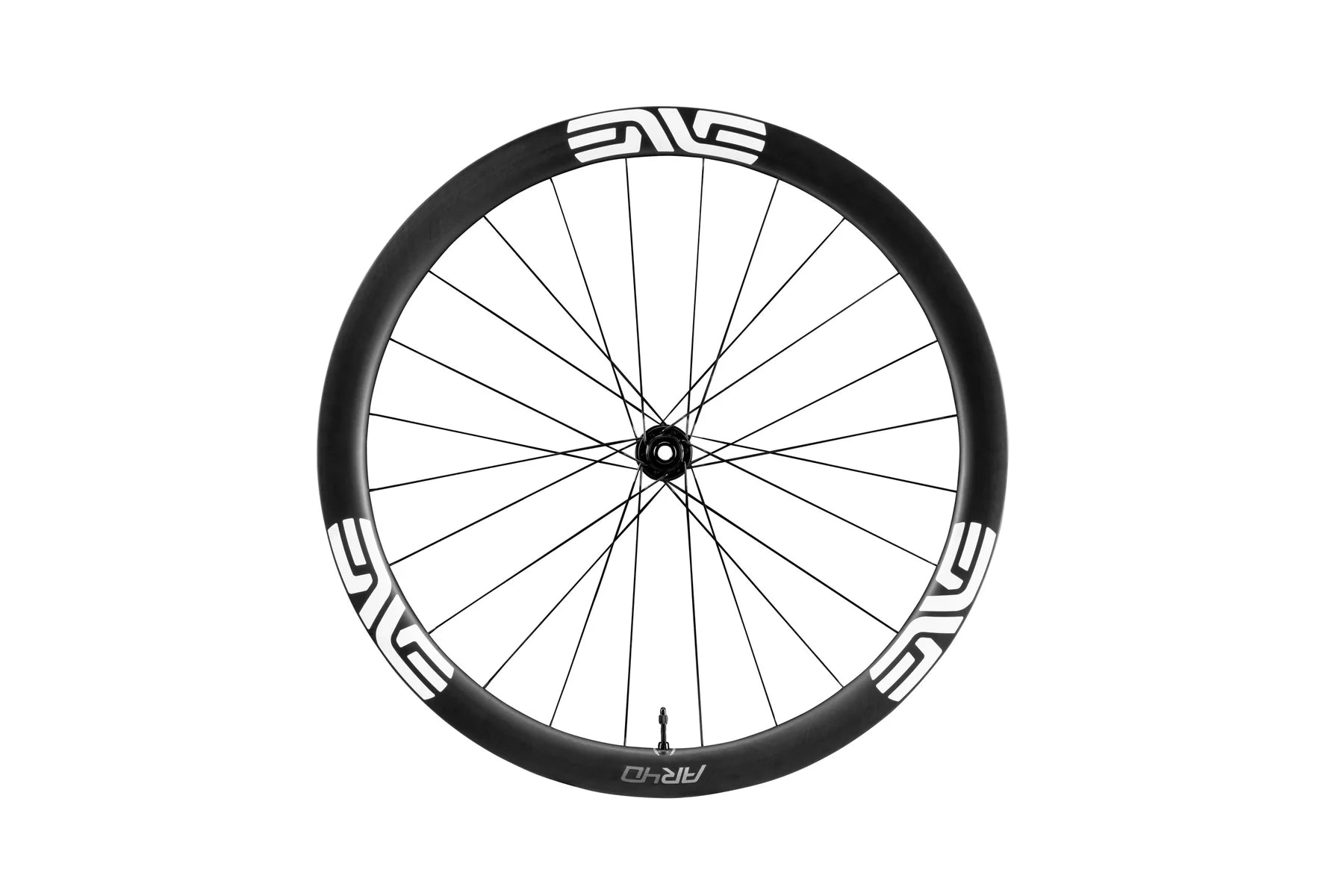

Enve AR40 Wheel
