Description

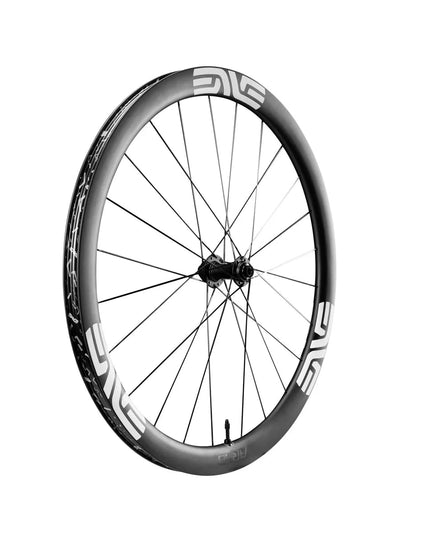

The ENVE AR40 represents the newest evolution in Foundation wheel technology, engineered for cyclists who demand versatility without compromise. Its 40mm aerodynamic rim profile—matched front and rear—cuts through air efficiently while the 25mm internal width provides optimal tire support across varied terrain. Whether you're attacking road segments or exploring gravel, the AR40 delivers the performance characteristics serious riders expect: responsive acceleration, stable handling, and reliable speed. Built for the road racer and adventure cyclist alike, these wheels bridge the gap between pure road performance and all-terrain capability.
Each wheel comes pre-taped and with a tubeless valve.
Tech Specs:
| Tech Specs - ENVE FOUNDATION AR40 WHEEL | ||
| SPEC TABLE | FRONT | REAR |
| Rim Weight | 425g | 425g |
| Wheel Weight | 690g | 825g |
| Wheelset Weight | 1515g (Includes Tape and Valves - HG Freehub) | |
| Effective Rim Diameter (ERD) | 579mm (+/- 3mm) | |
| Internal Rim Width | 25mm | |
| Sidewall Width | 3.6mm | |
| Pinch Flat Technology | Wide Hookless Bead | |
| Hole Count | 24h | |
| Depth | 40mm | |
| Tubeless Tape Width | 29mm | |
| Tubeless Valve Length | 61mm | 61mm |
| Spokes | Sapim CX-Ray J-Bend | |
| Hub | ENVE INNERDRIVE - Foundation | ENVE INNERDRIVE - Foundation |
| Hub Spacing | Front: 12x100 | Rear: 12x142 | |
| Recommended Tire Size | 27 - 50mm | |
| Minimum Tire Size | 27mm *Tire must be Tubeless and listed as "Approved/Recommended" on ENVE's Tire Compatibility Page.* | |
| Maximum Tire Pressure for Min. Tire (psi | bar) | 80 psi | 5.5 bar | |
| Spoke Length (INNERDRIVE Foundation Hubs) | 278mm/280mm | 274mm/280mm |
| Nipples | Alpina Nylock Brass | |
| Spoke Tension | 120kgf | |
| Brake Type | Centerlock | |

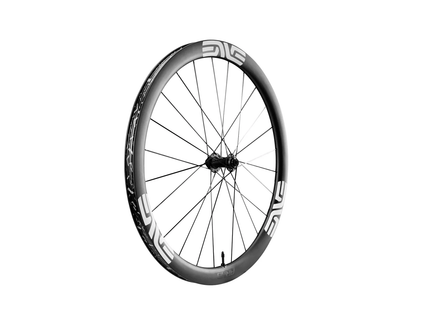

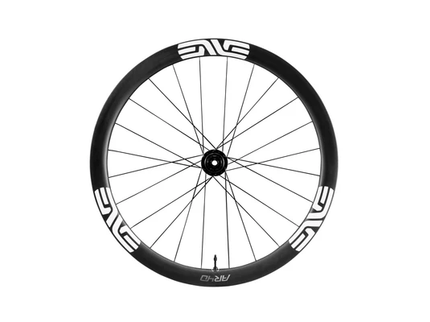

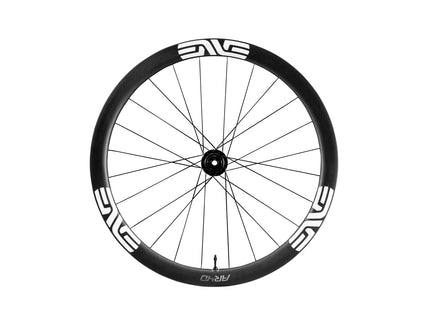

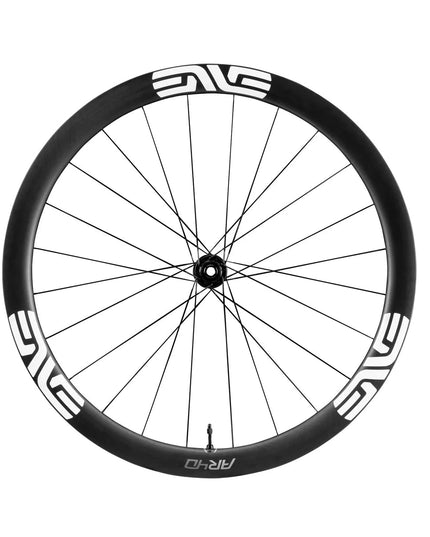

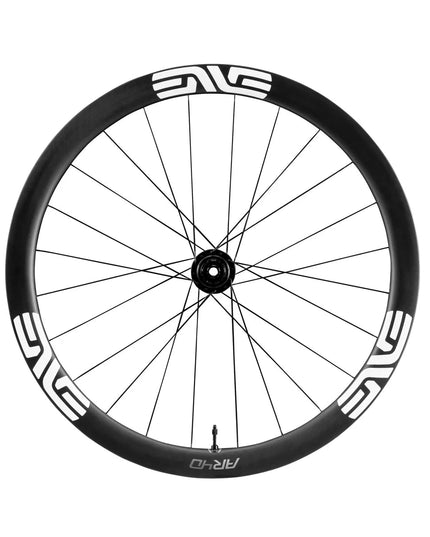

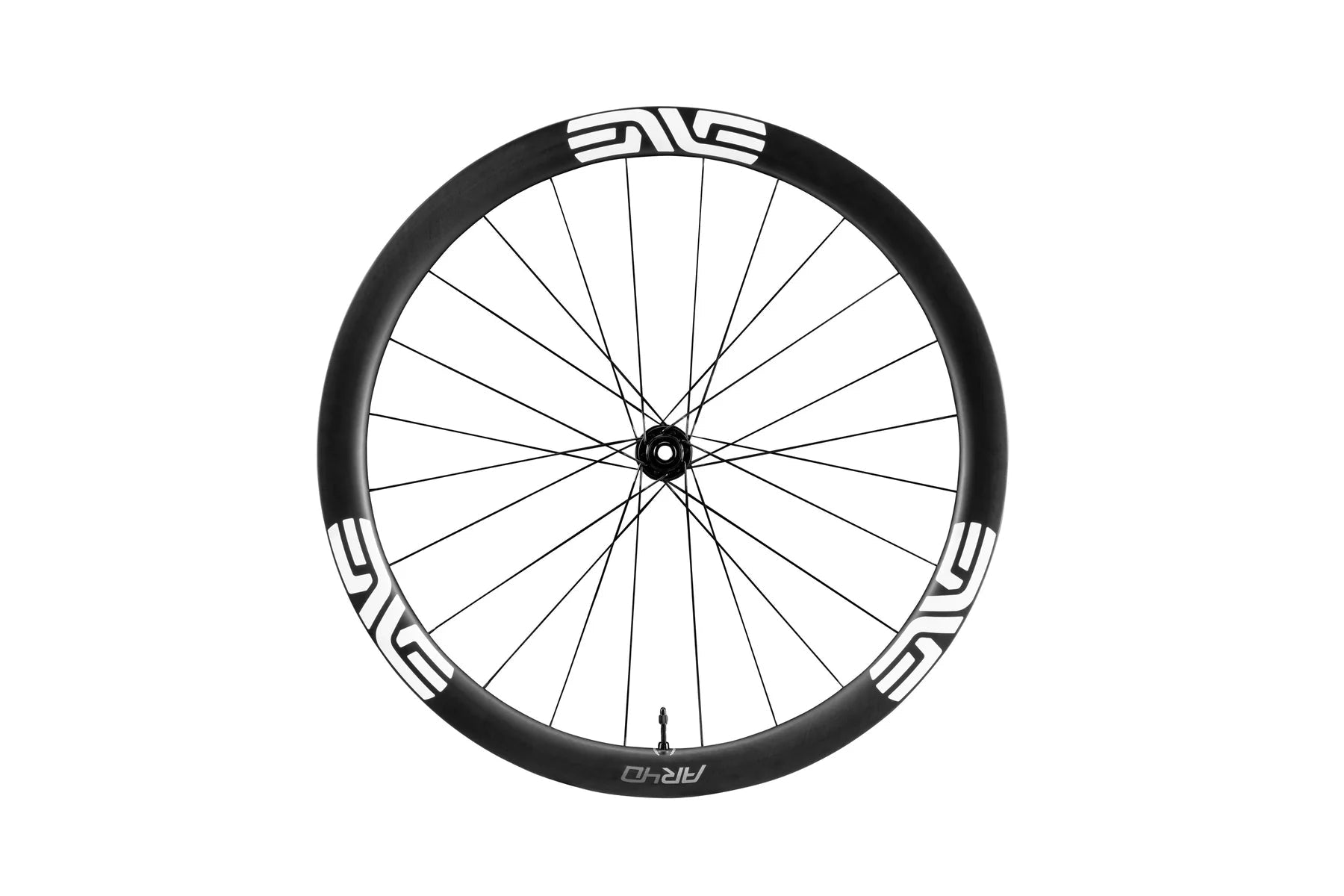

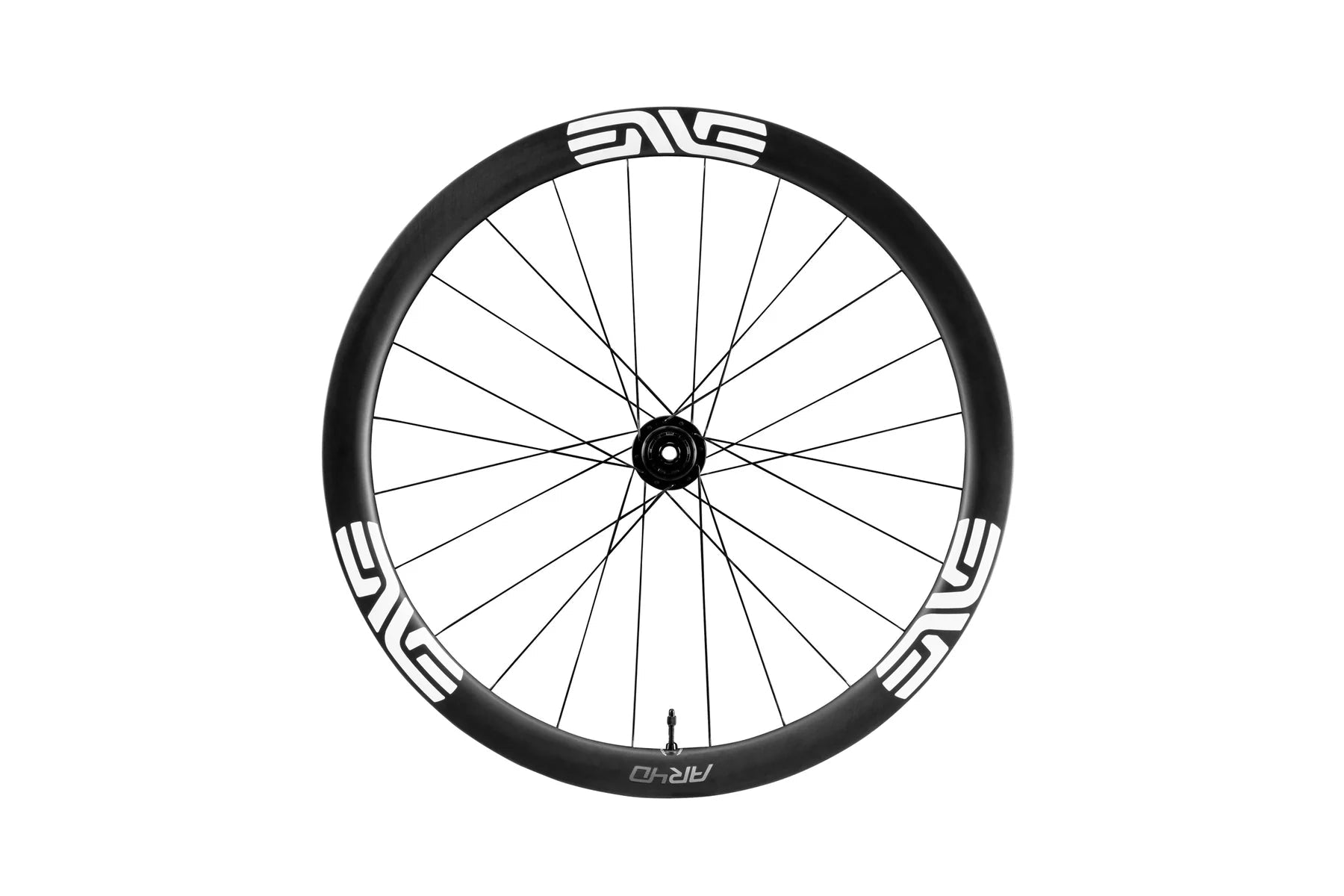

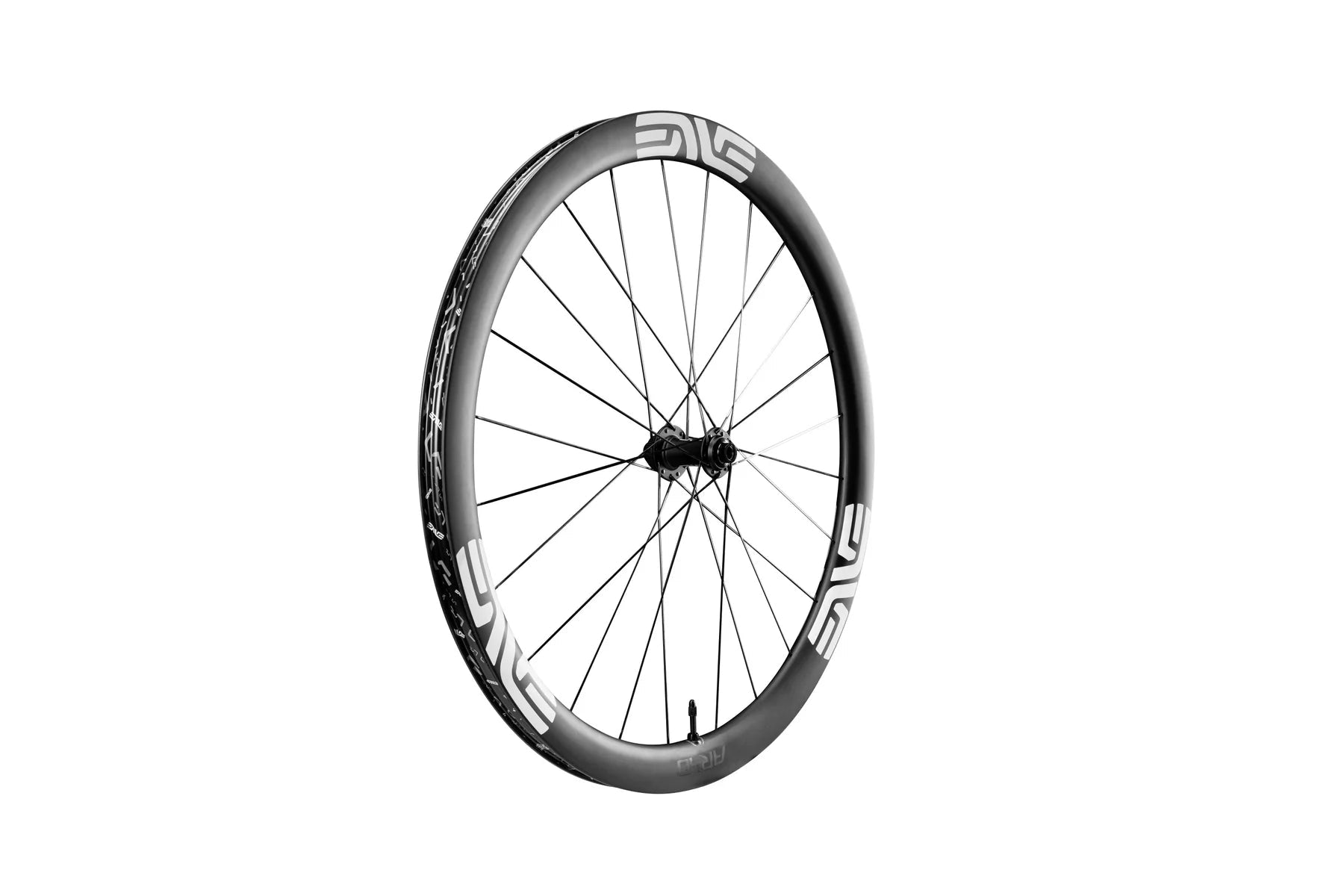

ENVE AR40 Wheel
$770.00
