Description:
EBIKE POWER, NORMAL FEEL

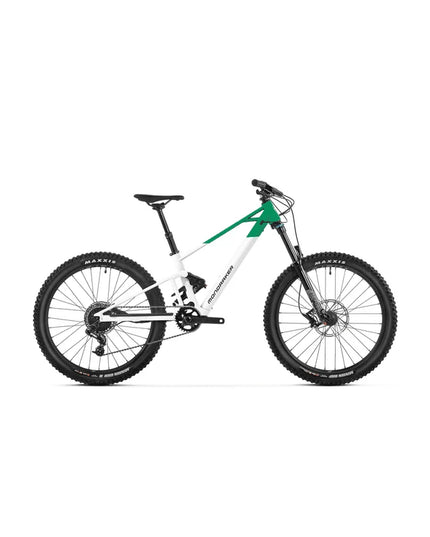

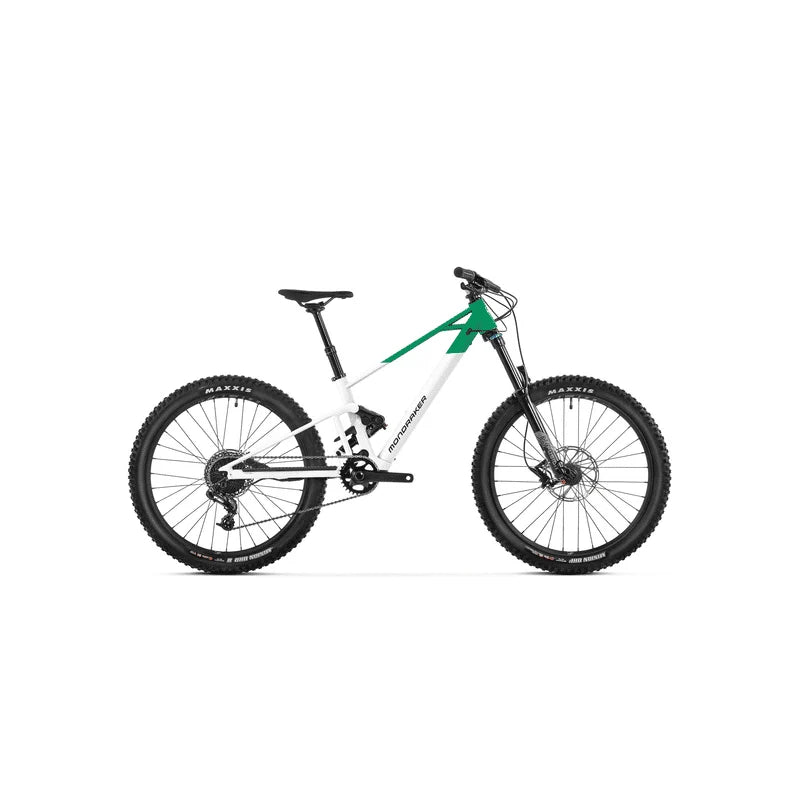

The new F-Play range has been developed in conjunction with the F-Trick range to make them ride as near as possible to a non-ebike: light, agile and responsive. To that end they share the same kinematic, Updated Zero Suspension System, suspension travel and a frame design that make them almost indistinguishable. The F-Play have a minimalist frame design with a stylised downtube which contains the 250Wh battery. The frame design includes the trademark Mondraker ‘window’ where the headtube meets the downtube and top tube, as well as being manufactured from Alloy Stealth Evo throughout.
F-PLAY ALSO COMES WITH THE LATEST ITERATION OF THE ZERO SYSTEM
It’s not only the F-Trick that gets the Updated Zero Suspension System. The new F-Play enjoys the same new Zero system as the NEAT and F-PODIUM. This update delivers faster acceleration, more feedback and a faster response to your pedalling input. Simply put, each pedal stroke counts for more. This updated version of the Zero system also offers further benefits such as:
• Improved initial sensitivity and trail compliance.
• A more progressive kinematic.
• A lighter system with improved weight to stiffness ratio.
• More compact with less unsprung weight.
• Greater seatpost insertion depth.
| Category | Specification |
|---|---|
| Frame | F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible |
| Sizes | One size: 300mm |
| Rear Shock | X-Fusion 02PRO R, 165x42.5mm; low-speed rebound, air preload; Trunnion top, 50x8mm bottom bushings |
| Shock Settings | A-Tune light compression |
| Fork | X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset; lockout, rebound, air preload |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings; top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | MDK XC 1.0, 6061 alloy; 25mm rise, 680mm width, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Beehive, 1lock-on, 135mm |
| Seatpost | X-Fusion Manic LC internal, 31.6mm diameter, 1X Remote lever, 100mm |
| Saddle | SDG Fly JR |
| Front Brake | Shimano MT501, RT56 180mm IS 6-bolt rotor, resin pads |
| Rear Brake | Shimano MT501, RT56 180mm IS 6-bolt rotor, resin pads |
| Brake Lever | Shimano MT501, Servo Wave, alloy lever |
| Rims | MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Spokes | CN round stainless steel |
| Front Hub | DA210FS02, 15x100mm, cup & cone ball bearings, IS 6-bolt |
| Rear Hub | Mahle-Ebikemotion X-30, HG freehub |
| Front Tire | Maxxis Minion DHF 24x2.4, tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 24x2.3, tubeless ready, EXO Protection, 60TPI, folding bead |
| Crankset | Prowheel DMJ-CR094S-TT, direct mount chainring, 150m |
| Rings | 30T, steel |
| Bottom Bracket | Prowheel PW-MBB73, 73mm |
| Pedals | SDG Slater JR |
| Chain | Shimano Deore M6100, 12s, Quick-Link |
| Rear Derailleur | Shimano Deore M6100, SGS, Shadow+, 12s |
| Shift Levers | Shimano Deore M6100, Rapid Fire Plus, 12s |
| Cassette | Sunrace CSMZ600, 11–51T |
| Derailleur Hanger | Mondraker M07 |
| Weight | 37.9 lbs |
| Display | iWoc ONE Head Uni |
| Motor | Mahle X-30, Drive Unit |
| Battery | Mahle IX, 250Wh |
